7.3 Otto cycle where CR = V1/V2 denotes the compression ratio and the temperature at states 2 and 4 are determined using the following equations. The net power production and the thermal efficiency of the cycle are obtained as follows.
How many processes are there in Otto cycle?
The four-stroke Otto cycle is made up of the following four internally reversible processes: 1–2, isentropic compression; 2–3, constant-volume heat addition; 3–4, isentropic expansion; and 4–1, constant-volume heat rejection.
What is the formula for compression ratio of the Otto cycle Mcq?
Explanation: This is the expression for efficiency of Otto cycle and rk=compression ratio=Vmax/Vmin.
What is K in Otto cycle?
Thermal Efficiency Derivation A typical value for an air/fuel mixture is k = 1.35.
What is dual combustion cycle?
Dual Combustion Cycle is a combination of Otto cycle and Diesel cycle. It is sometimes called semi-diesel cycle, because semi-diesel engines work on this cycle. In this cycle, heat is absorbed partly at a constant volume and partly at a constant pressure.
How do you calculate engine power output?
The equation to calculate horsepower is simple: Horsepower = Torque x RPM / 5,252. You can use our horsepower calculator below to try it out yourself.
What is 2 stroke IC engine?
A two-stroke (or two-stroke cycle) engine is a type of internal combustion engine that completes a power cycle with two strokes (up and down movements) of the piston during one power cycle, this power cycle being completed in one revolution of the crankshaft.
Which statement is correct of dual cycle?
Explanation: None. Explanation: Another name for Dual cycle is a mixed cycle. Explanation: Since, Dual Cycle is a combination of Otto cycle and Diesel cycle, so in Dual cycle, generally heat addition takes place first at constant volume then at constant pressure.
Where is T3 in Otto cycle?
if we are providing pressure gauges we can measure the pressure at state point 3 and 4. (T3/T4)= (P3/p4)^(1.4/. 4) where T4 is the temperate at the end of expansion.
What is Gamma in combustion?
where p is the pressure, T is the temperature, and gamma is the ratio of specific heats. During the combustion process (3-4), the volume is held constant and heat is released.
Which engine works on dual cycle?
Dual combustion cycle finds application in Diesel engine. Dual combustion cycle is an ideal air standard closed cycle, which has five processess where heat addition be firstly at constant volume and next at constant pressure and rejection at constant volume. This has application to use in Diesel engines.
What is the compression ratio of an Otto cycle engine?
In general, it is desired to have a high compression ratio, because it allows an engine to reach higher thermal efficiency. For example, let assume an Otto cycle with compression ratio of CR = 10 : 1. The volume of the chamber is 500 cm³ = 500×10 -6 m 3 (0.5l) prior to the compression stroke. For this engine a ll required volumes are known:

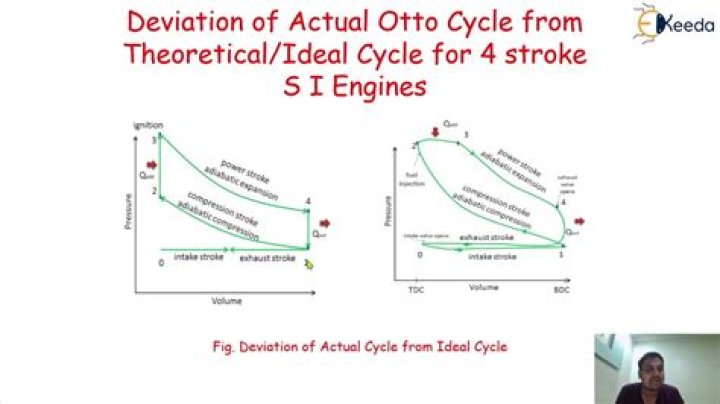

What is the Otto cycle?
The Otto cycle is a set of processes used by spark ignition internal combustion engines (2-stroke or 4-stroke cycles).
What is the volume of the chamber in the Otto cycle?
For example, let assume an Otto cycle with compression ratio of CR = 10 : 1. The volume of the chamber is 500 cm³ = 500×10-6 m 3 (0.5l) prior to the compression stroke. For this engine all required volumes are known: V 1 = V 4 = V max = 500×10-6 m 3 (0.5l) V 2 = V 3 = V min = V max / CR = 55.56 ×10-6 m 3
How to calculate the thermal efficiency of an Otto cycle?
As was derived in the previous section, the thermal efficiency of an Otto cycle is a function of compression ratio and κ: It this equation the displacement volume is equal to V max – V min. The net work for one cycle can be calculated using the heat added and the thermal efficiency:
