Testing Off-Axis Response at Home Listen to a track you know well. Now, reposition the speakers so they are pointed straight forward into the room. This is off-axis listening. Listen to that same track again.
Can tweeters be out of phase?
Tweeters only need to be connected out of phase if a particular speaker’s crossover causes a 180 degree phase shift.
What causes tweeters to distort?
If you play a receiver at a volume that is higher than the power it can provide the distortion caused by this can damage tweeters. If you have too much power you are more likely to damage woofers. The crossover set at 100 hz removes bass below 100hz from the speakers and lessens the amount of power needed.

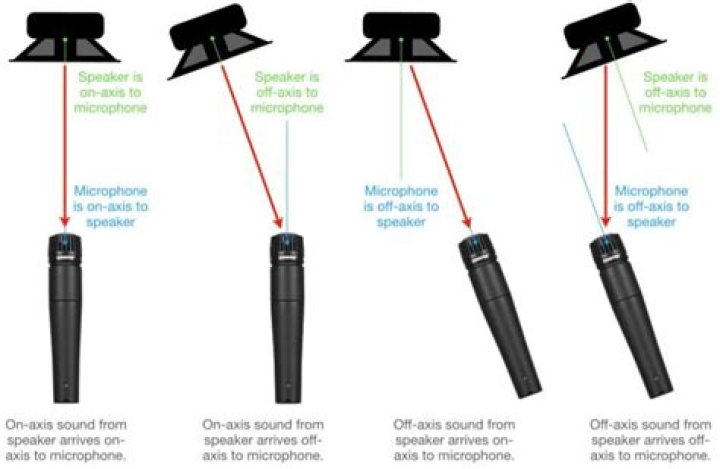

What is on axis and off axis?
on-axis means that the speaker is basically pointing straight at you, off-axis means the speakers are facing each other ( in most applications ) so people will sometimes put the tweeters in the A-pillars, if they have them “on-axis” with the driver seat, when sitting in the driver seat you would be looking straight on …
How far should you toe-in speakers?
Try to get about 4 feet of separation for bookshelf speakers or 8 feet for floorstanding speakers. If your speakers are too close, sounds will blend together and become muddy. If they are too far apart, there will be a gap between the two halves of the stereo image (more on this later).
How do you check the polarity of a tweeter?
to check the polarity of the system, play a spoken word recording. when both tweeters are wired correctly with their respective midrange, the sound will be clear and solidly centered.
How does a tweeter get blown?
Failures in tweeters, midrange and midbass speakers are caused by ELECTRICAL and/or MECHANICAL power handling issues. Most failures occur from ELECTRICAL failure caused by applying too much power to the speaker’s voice coil. Constant over-powering results in “burned” voice coils.
How do I know if my tweeters are damaged?
Basically, play that tone at low volume and put your head holes right near the tweeter. If it is not making any sound, it is blown. If it does make sound, it might be partially damaged or work fine. If it is loud and clear, sounds like your other speakers then you are OK.
What is the difference between on axis and off axis?
What does on axis mean in terms of frequency response?
On-axis frequency response is the starting place for measuring loudspeakers because it describes the initial sound that reaches a listener’s ear from a loudspeaker. The unique ear of the listener receives a barrage of acoustic information that is then converted into signals transmitted to the brain.
What is speaker off axis frequency response?
For definitions and more discussion see our article speaker off axis response: psychoacoustic and subjective importance. A speaker that is fully toed-in is one that points directly at the listening position. The direct sound is therefore described by the 0 degree, on axis frequency response.
Why does the frequency of a tweeter respond to the tweeter?
This is because the tweeter starts to get acoustically large relative to the wavelengths being reproduced. The exact frequency at which the response starts tapering off is therefore mathematically related to the acoustical size of the driver (see here for more discussion on this).
What does it mean when a tweeter tapers off?
The vast majority of speakers show a tapering off in high frequency energy above about 4kHz as the tweeter becomes directional. This is because the tweeter starts to get acoustically large relative to the wavelengths being reproduced.
What is the correct frequency response Angle for a speaker?
Frequency response measurements at 0 degrees (on axis) and 90 degrees. These are very similar off axis angles as the example presented above for a speaker toed-in directly at the listening position. Measurements taken from the ATC SCM19 speaker.
