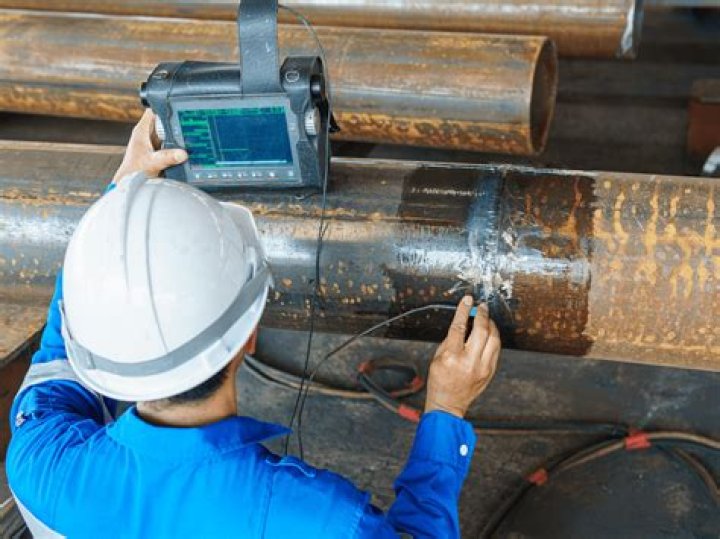

Non-destructive testing (NDT) is an inspection and analysis technique used by the oil and gas industry, among others, to evaluate the properties of pipelines without destroying the serviceability of the original system.
What are the different types of pipeline?
Types of Pipelines
- 1: Steel Pipeline.
- 2: Cast Iron Pipes.
- 3: Plastic Pipeline.
- 4: Concrete Pipeline.
- 5: Water Pipeline.
- 6: Oil Pipeline.
- 7: Slurry Pipeline.
- 8: Gas Transmission Pipeline.
What is non destructive method?
NDT (Non-Destructive Testing) refers to an array of inspection techniques that allow inspectors to collect data about a material without damaging it. It refers to an array of inspection methods that allow inspectors to evaluate and collect data about a material, system, or component without permanently altering it.
Why do we use non destructive testing?
Non-destructive testing is carried out to ascertain that the components or materials being used are not damaged or faulty and are fit to be used by personnel. The result of testing can show whether the components need to be repaired or if they are safe for operation.
What is a fuel pipeline?
Pipelines deliver energy from where it’s produced to where it is turned into useful fuels and products and on to our local communities. Energy products delivered by pipeline include crude oil, refined products such as gasoline and diesel, and natural gas liquids such as ethane and propane.
What are petroleum pipelines made of?
Pipelines usually consist of sections of pipe made of metal (e.g., steel, cast iron, and aluminum), though some are constructed of concrete, clay products, and occasionally plastics. The sections are welded together and, in most cases, laid underground. Most countries have an extensive network of pipelines.
What is the purpose of NDT?
The purpose of NDT is to inspect a component in a safe, reliable, and cost effective manner without causing damage to the equipment or shutting down plant operations. This is in contrast to destructive testing where the part being tested is damaged or destroyed during the inspection process.
What is the name of NDT method?
Current NDT methods are: Acoustic Emission Testing (AE), Electromagnetic Testing (ET), Laser Testing Methods (LM), Leak Testing (LT), Magnetic Flux Leakage (MFL), Liquid Penetrant Testing (PT), Magnetic Particle Testing (MT), Neutron Radiographic Testing (NR), Radiographic Testing (RT), Thermal/Infrared Testing (IR).
What are the measures to allow pipeline expansion?
MEASURES TO ALLOW PIPELINE EXPANSION • Places affected by thermal expansion, earthquake, soil settlement, etc., allow pipelines to expand (elongate) freely in order to prevent development of large stresses in the pipe.
What does Pepe 607 mean in oil and gas?
PE 607: Oil & Gas Pipeline Design, Maintenance & Repair7 MEASURES TO ALLOW PIPELINE EXPANSION • This is common for both aboveground and underground pipelines. • For pipelines above ground, sometimes an inverted U or loop is used instead.
What are the different methods of bending steel pipe?
BENDING METHODS FOR STEEL PIPE •Compression bending- pressing a pipe with a moving roller against and around a stationary die •Draw bending- similar to compression bending except that a mandrel is inserted through one end of the pipe.
How to build a long-distance steel gas or oil pipeline?
Procedures used for long-distance steel gas or oil pipelines • Step 1: Preliminary planning • Step 2: Route selection • Step 3: Acquisition of right-of-way • Step 4: Soil borings, testing of soil and other data collection • Step 5:Pipeline design • Step 6: Seek legal permits • Step 7: Start construction 1. Right-or-way preparation 2. Stringing
