Part A) Simple Miniscale Distillation. ~ used when separating relatively pure liquids with large boiling differences or liquids with solid impurities; samples that range from 10-50 mL. 1. use clean and dry glassware to assemble the miniscale apparatus; grease all joints if needed.
What is a microscale distillation?
Short-path microscale distillations are carried out using the Hickman distillation head as the receiving device for the distilled liquid. The vapours of the heated liquid rise upward and are cooled and condensed on either the inside walls of the Hickman head or on the walls of the condenser.
What is distillation condenser?
Condenser is a cooling unit used in the distillation process. Distillation is a separating technique used to separate two liquids based on the difference between the boiling points of the liquids present in the mixture. For cooling the vapors back to liquid droplets the condenser is fitted.
What does a magnetic spin vane do?
7.8 B on p. 603 shows a microscale magnetic spin vane, which is used to stir liquids. Stirring is very important to avoid “bumping” any time a liquid is heated. In the event that a magnetic spin vane is not available, use boiling stones, or a boiling (wooden) stick.
What are the apparatus used in simple distillation?

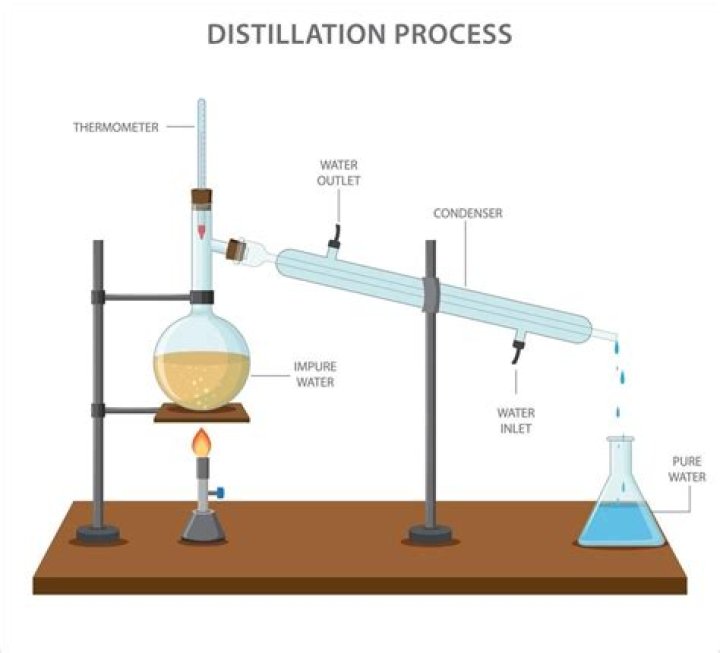

The apparatus used consists of three major parts: distillation flask (or pot ) to heat the mixture and volatilize the components, a condenser to cool the vapors back to liquid state, and a collection vessel.
What is microscale distillation used for?
Most microscale versions are simple distillations, as use of a fractional column adsorbs too much material. Therefore, these techniques are generally used to remove non-volatile or very high-boiling or low-boiling impurities.
How does a Vigreux column work?
Vigreux Distilling Columns A Vigreux column is a type of air condenser where the simple tube has been modified to include an abundance of downward-pointing indentations. This dramatically increases the surface area per unit length of the condenser.
How does a distillation condenser work?
During distillation, vapors are formed in the heated distillation flask. The condenser cools these vapors condensing them back to liquid droplets that flow down the condenser into the receiver flask.
How does distillation work step by step?
Distillation Process The process of distillation begins with heating a liquid to boiling point. The liquid evaporates, forming a vapor. The vapor is then cooled, usually by passing it through pipes or tubes at a lower temperature. The cooled vapor then condenses, forming a distillate.
What are the steps in distillation?
The steps of fractional distillation are as follows: You heat the mixture of two or more substances (liquids) with different boiling points to a high temperature. Heating is usually done with high pressure steam to temperatures of about 1112 degrees Fahrenheit / 600 degrees Celsius .
What are examples of distillation?
Distillation is used for purifying of liquids and also to separate a mixture into its individual components . Example- Crude oil distillation is the most common example where crude is distilled to form various products such as diesel, kerosene , naaptha.
What equipment is used in distillation?
DISTILLATION EQUIPMENT. In addition to the stills, we fabricate all related stainless steel and copper equipment including fermenters, cookers, condensers, coolers, whiskey tanks, bottling tanks, etc. We are also a major supplier of equipment used in the distillation of industrial and power alcohol.
What uses fractional distillation?
Fractional distillation is a technique used in batch and continuous operations that relies on a distillation column containing a “packing material” or perforated plates and a continuous reflux of purified distillate to help separate chemicals with boiling points that are too close together to allow separation by simple distillation.
