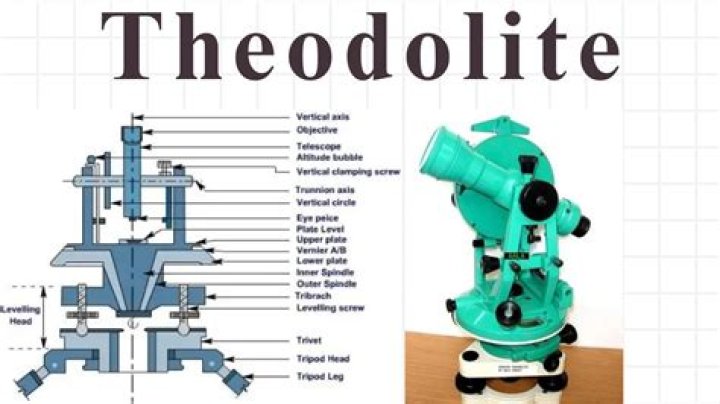

Micro Optic Theodolites are traditional angle measurement instruments that are used in geodesic survey and engineering measurement. Features: Used in geodesic survey. Used in engineering measurements. Used for all routine survey work in construction.
What is non-transit theodolite?
Non-Transit Theodolites: They are also known as Y-theodolites and plane theodolites. In such types of theodolites, the reversal of sight line and telescope is not possible. Digital Theodolite: The values of the observation are provided directly on the viewing panel of the digital theodolite.
How does a theodolite work?
A theodolite works by combining optical plummets (or plumb bobs), a spirit (bubble level), and graduated circles to find vertical and horizontal angles in surveying. An optical plummet ensures the theodolite is placed as close to exactly vertical above the survey point.
What is the principle of theodolite?
The principles of the theodolite are that a beam of light travels in a straight line, and that when you know the length of one side of a triangle and the angles of the corners as measured by reflecting beams of light then you can precisely map features on the ground both horizontally and vertically.
What is the difference between transit theodolite and non-transit theodolite?
Transit Theodolite: A theodolite is called a transit theodolite when its telescope can be transited i.e revolved through a complete revolution about its horizontal axis in the vertical plane. B. Non-Transit type- In this type the telescope is cannot be transited.
What is the difference between transit and non-transit theodolite?
In a transit theodolite, the telescope can be inverted in the vertical plane. Some types of transit theodolites do not allow the measurement of vertical angles. The rotation in the vertical plane is restricted to a semi-circle in a non-transit theodolite.
What is theodolite surveying and its purpose?
Theodolite is a measurement instrument utilized in surveying to determine horizontal and vertical angles with the tiny low telescope that may move within the horizontal and vertical planes. The accuracy with that these angles may be measured ranges from 5mins to 0.1 secs. It is utilized in triangulation networks.
How many theodolites are there?
Types of Theodolites There are two different kinds of theodolites: digital and non digital. Non digital theodolites are rarely used anymore. Digital theodolites consist of a telescope that is mounted on a base, as well as an electronic readout screen that is used to display horizontal and vertical angles.
What are the types of theodolites?
Gyrotheodolite
Cinetheodolite
Theodolite/Variant
