An internal expanding brake consists of two shoes where the outer surface of the shoe is lined with some friction material to increase the coefficient of friction and prevent wearing away of the material. This type of brake is used in cars and light trucks.
What is a expanding brake?
: a brake in which a flexible band or a set of circular segments is sprung outward against the inside rim of a hub or wheel.
What are leading and trailing shoes of an internal expanding shoe brake?
Trailing and Leading shoe The leading shoe is “dragged” into the friction surface of the drum and thus achieving greater braking force. The other shoe is “trailing”, moving against the direction of rotation, is thrown away from the friction surface of the drum and is far less effective.
Which part of the mechanical brake expands the brake shoe?
When you press the brake pedal, the oil in the brake master cylinder multiplies the hydraulic force sent to the wheel cylinders. Thus, it causes its pistons to push outwards. The pistons, in turn, cause the brake shoes to expand and rub against the drum.

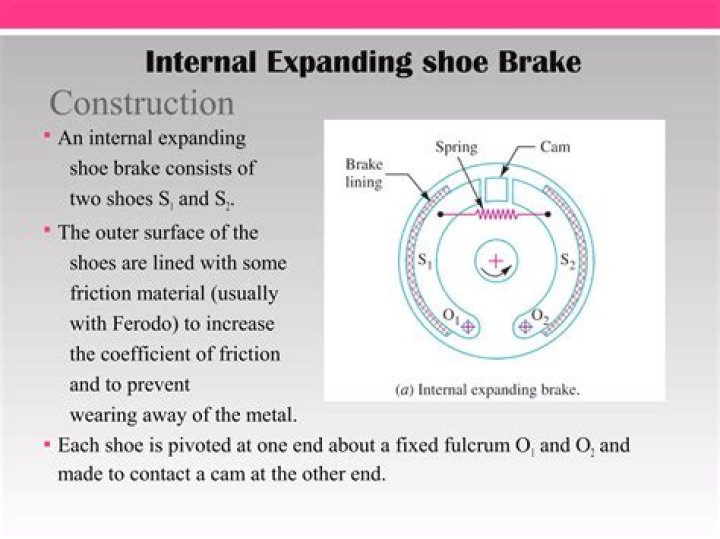

What is internal expanding shoe brake?
An internal expanding brake consists of two shoes S1 and S2. The outer surface of the shoes are lined with some friction material (usually with Ferodo) to increase the coefficient of friction and to prevent wearing away of the metal. This type of brake is commonly used in motor cars and light trucks.
How does a Prony brake work?
A Prony brake (see figure) develops mechanical friction on the periphery of a rotating pulley by means of brake blocks that are squeezed against the wheel by tightening the bolts until the friction torque FR balances the torque WL.
How do hydraulic brake systems work?
System operation In a hydraulic brake system, when the brake pedal is pressed, a pushrod exerts force on the piston(s) in the master cylinder, causing fluid from the brake fluid reservoir to flow into a pressure chamber through a compensating port.
What is the advantage of a two shoe trailing brake?
The other shoe is called the “trailing (secondary) shoe.” The leading shoe is pressed in the same direction as the rotation of the drums, and this rotation helps to press the shoes against the drum with greater pressure for stronger braking force.
Why the leading brake shoe wears quicker than the trailing shoe?
When the brake is applied with the vehicle stationary, hydraulic pressure pushes each shoe outwards and an equal force is applied by each shoe to the drum. The rate of lining wear of leading shoe is higher as it does more work than the trailing shoe.
How do brake shoes work?
Brake shoes carry the brake lining inside brake drum systems. When the driver applies the brake, a wheel cylinder in the drum brake system forces the brake shoe outward, against the inside of the drum. This creates friction between the lining and drum, causing the car to brake. The kinetic energy is dissipated as heat.
How does a magnetic brake work?
When electrical power is applied to an electromagnet coil a magnetic field is created. The magnetic force is strong enough to deflect the flat spring and pull the armature across a small air gap into the magnet face. The friction connection between the magnet and armature causes the rotating shaft to slow and stop.
How does the automatic brake shoe adjustment work?
The automatic brake shoe adjustment provides a self-adjusting mechanism actuated by the expander movement during the on/off brake application cycle, enabling a predetermined lining to drum clearance to be maintained.
What is the difference between friction braking and shoe braking?
Brake shoes are a wear item and brakes should be self-compensating to adjust for shoe wear. At present, the friction braking generally use two modes: shoe brake and disc brake.
What is the function of the shoe on a drum brake?
The shoe is the star of the drum brake system. It provides the friction against the drum that stops your car when you step on the brake pedal. Drum brake systems are only used on the rear wheels nowadays, as they are not as efficient and require more maintenance than the modern disc brake system.
What are the different types of brake shoe systems?
The most common is the brake shoe system that has been in use for decades. Rear disc brakes with a drum cast into the rotor. The parking brake part of this system is a drum brake system. The disc brake only system. The only part of this procedure that applies to disc-only systems is the adjustment of the cable system.
