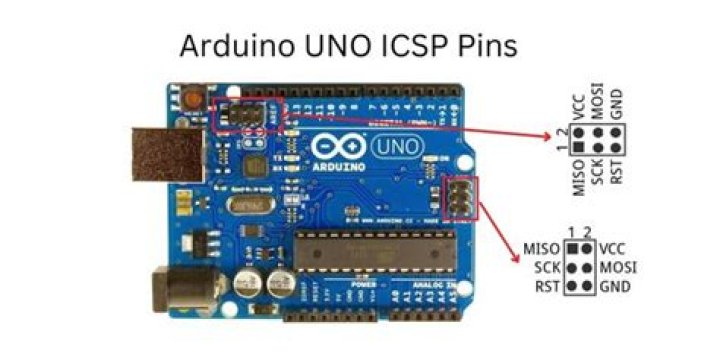

ICSP stands for In-Circuit Serial Programming. The name originated from In-System Programming headers (ISP). Manufacturers like Atmel who work with Arduino have developed their own in-circuit serial programming headers. These pins enable the user to program the Arduino boards’ firmware.
Can your Arduino Uno communicate with the computer via USB and at the same time control an LED connected to digital pin 0?
The Arduino Uno has a number of facilities for communicating with a computer, another Arduino, or other microcontrollers. The RX and TX LEDs on the board will flash when data is being transmitted via the USB-to-serial chip and USB connection to the computer (but not for serial communication on pins 0 and 1).
What pins are required for serial programming ISP )?
The programming process uses VCC, GND and four data pins.
Can I use ICSP pins?
ICSP pins are effective(helpful) to use when your USB port of Arduino is broken or damaged. They are secondary control pins. These pins are used to code and boot an Arduino from an external source. These pins allow inter workings of two or more Arduino boards and also allow you to upload your firmware.
What is ICSP connector?
The ICSP connector is the 5-pin connector at the end of the development board. The PIC programmer plugs directly into the ICSP connector, so that the microcontroller can be programmed. The PIC programmer has a USB connector so that it can plug into the USB port of a computer.
How do I program my Arduino Nano with ICSP?
- Step 1: Preparing programmer.
- Step 2: Preparing Arduino IDE. All When wiring is done. Now we have to do some settings in IDE. Go to Tools > Board & select Arduino Nano. In Processor, select ATmega328. & In Programmer, select Arduino as ISP. (” Arduino as ISP” not “ArduinoISP”) The settings is done.
Which is the smallest Arduino?
Beetle
Beetle is an extremely the smallest Arduino Leonardo board. It derives its core notion from minimalism without compromising functionality. It comes with Atmel AtMega32u4 @16MHz clock time and has expanded amounts of interfaces: 10 digital pins, 5 analog pins and 4 PWN pins.
What is the size of Arduino Uno internal bus width?
Tech specs
| Microcontroller | ATmega328P |
|---|---|
| LED_BUILTIN | 13 |
| Length | 68.6 mm |
| Width | 53.4 mm |
| Weight | 25 g |
What is ICSP in microcontroller?
In-system programming (ISP), or also called in-circuit serial programming (ICSP), is the ability of some programmable logic devices, microcontrollers, and other embedded devices to be programmed while installed in a complete system, rather than requiring the chip to be programmed prior to installing it into the system.
How to program Arduino?
Arduino microcontrollers come in a variety of types.
What are the applications of Arduino?
The Arduino microcontroller has a nearly limitless array of innovative applications for everything from robotics and lighting, to games and gardening! It’s a fun way to automate everything, enabling you to control simple devices or manage complex Halloween displays.
What is Arduino Uno?
The Arduino UNO is an open-source microcontroller board based on the Microchip ATmega328P microcontroller and developed by Arduino.cc.
What is the Arduino code?
The Arduino Integrated Development Environment (IDE) is the main text editing program used for programming the Arduino. It is where you’ll be typing up your code before uploading it to the board you want to program. Arduino code is referred to as sketches.
