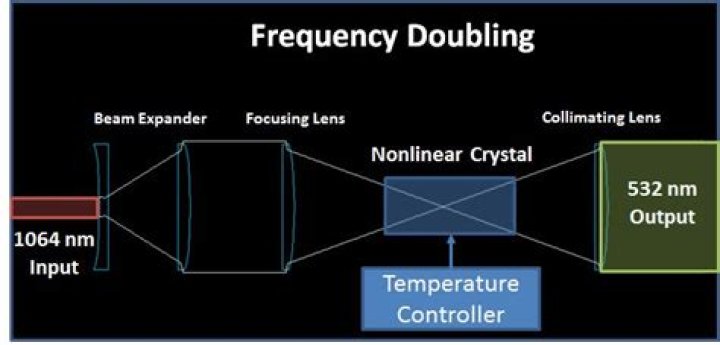

Frequency doubling is a frequently used technique for generating light with short wavelengths: Green light with wavelength 532 nm can be generated by frequency-doubling the output of a neodymium- or ytterbium-based 1064-nm laser (→ green lasers). Green laser pointers are also usually based on this approach.
What wavelength is a YAG laser?
1064 nm
Neodymium:Yttrium-Aluminum-Garnet Lasers The Nd:YAG lasers operate at a wavelength of 1064 nm. These lasers are fiberoptic-delivered contact lasers that generate a free-running pulsed beam of energy.
How many different transitions normally occur in a Nd YAG laser?
Since the wavelength of the pump-light source (diode laser) can vary within low limits, a total of three to four transitions can be pumped with high efficiency.
What is meant by frequency doubling?
Second-harmonic generation (SHG, also called frequency doubling) is a nonlinear optical process in which two photons with the same frequency interact with a nonlinear material, are “combined”, and generate a new photon with twice the energy of the initial photons (equivalently, twice the frequency and half the …
What is frequency in laser?
The optical frequency (for example of a quasi-monochromatic laser beam) is the oscillation frequency of the corresponding electromagnetic wave. The optical frequency can be calculated as the vacuum velocity of light divided by the vacuum wavelength: ν = c / λ.
What is Q switched Nd YAG laser?
The Q-Switched Nd:YAG laser works by targeting specific pigment in the skin, which TARGETS the damaged skin cells in the treatment area. When it comes to laser tattoo removal, the Q-Switched Nd:YAG laser targets ink pigment and breaks it up into smaller particles through powerful bursts of energy.
How do YAG lasers work?
How Does A Long Pulsed Nd:YAG Laser Work? Nd:YAG laser energy is selectively absorbed by the deeper levels of the dermis and allows for treatment of deeper vascular lesions such as telangiectasias, hemangiomas and leg veins. The laser energy is delivered using long pulses which are converted into heat in the tissue.
Where is Nd:YAG mostly used?
There are numerous ophthalmic applications for Nd:YAG lasers. They are most commonly used to treat posterior capsular opacification after cataract surgeryand to create a peripheral iridotomy in patients with narrow angles or angle-closure glaucoma.
Why are two lasers not possible?
Essentially, the problem is stimulated emission caused by the pump light itself. Inversion by optical pumping becomes possible when using a three-level system. Therefore, a moderate population in the third level (the upper laser level), as achieved with a moderate pump intensity, is sufficient for laser amplification.
What is the wavelength of light emitted from YAG lasers?
Nd:YAG lasers typically emit light with a wavelength of 1064 nm, in the infrared. However, there are also transitions near 946, 1120, 1320, and 1440 nm.
What are YAG lasers used for in medicine?
Medicine. Nd:YAG lasers emitting light at 1064 nm have been the most widely used laser for laser-induced thermotherapy, in which benign or malignant lesions in various organs are ablated by the beam. In oncology, Nd:YAG lasers can be used to remove skin cancers. They are also used to reduce benign thyroid nodules,…
What is Ndnd YAG laser?
Nd:YAG lasers are one of the most widely used type of solid state lasers. Its active medium is Y3 Al 5 O 12 (YAG) crystal doped by Nd 3+ ion at concentrations up to 1%. It can be pumped in a wide spectrum range, 480–600 nm, using krypton arc lamps or emitting diodes, for example.
What is the difference between Nd YAG and krypton flashlamps?
Nd:YAG absorbs mostly in the bands between 730–760 nm and 790–820 nm. At low current densities krypton flashlamps have higher output in those bands than do the more common xenon lamps, which produce more light at around 900 nm. The former are therefore more efficient for pumping Nd:YAG lasers.
