FDDI stands for Fiber Distributed Data Interface. It is a set of ANSI and ISO guidelines for information transmission on fiber-optic lines in Local Area Network (LAN) that can expand in run upto 200 km (124 miles). An FDDI network contains two token rings, one for possible backup in case the essential ring falls flat.
Which connector is used in FDDI network?
FDDI (Fiber Distributed Data Interface) is a network standard that uses fiber optic connections in a local area network (LAN) that can extend in range up to 200 kilometers (124 miles). The FDDI protocol is based on the token ring protocol.
What is Token Ring connection?
A token-ring network is a local area network (LAN) topology that sends data in one direction throughout a specified number of locations by using a token. The switch then establishes a dedicated connection between the two stations, enabling data to be transmitted and received at the same time.

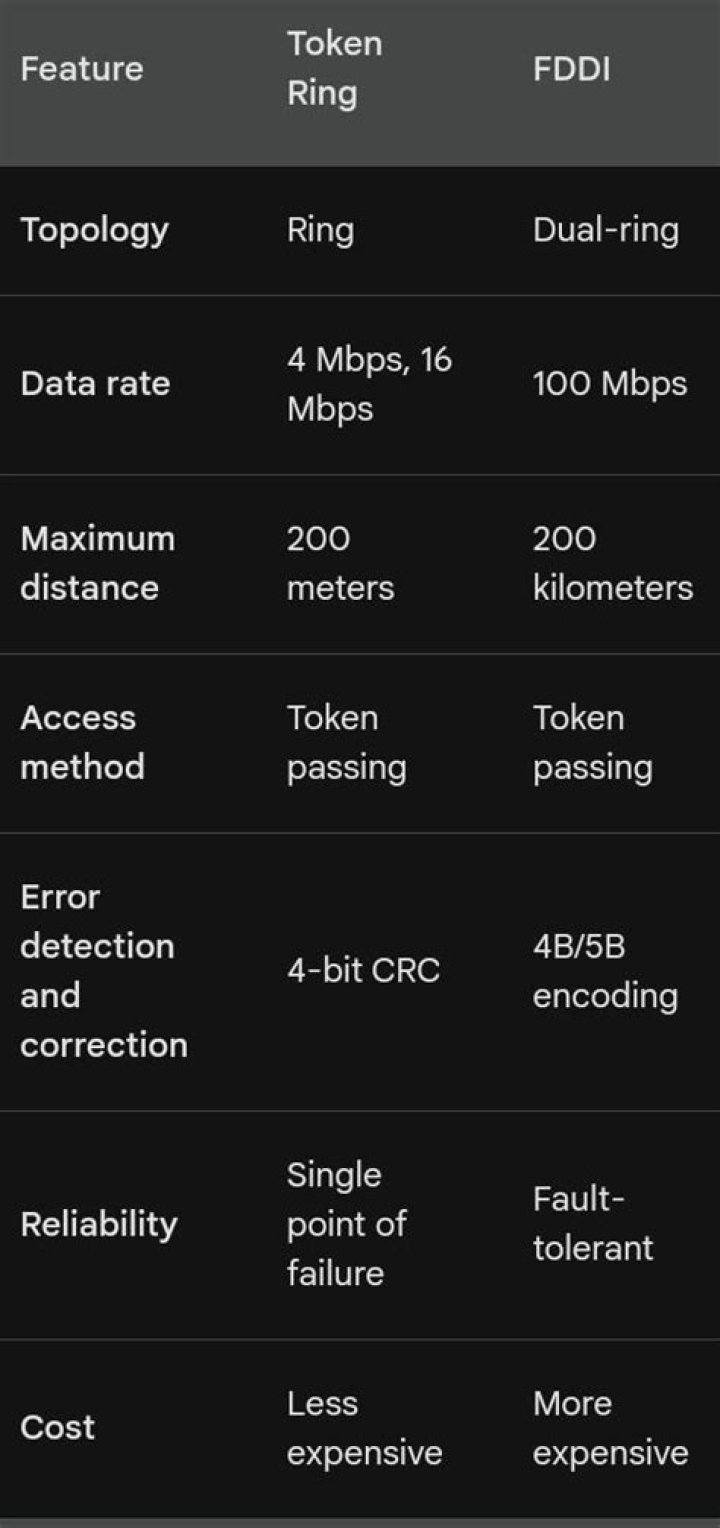

How Token Ring is different from FDDI?
– Unlike the basic Token Ring, which is based on the use of priority and reservation bits, the priority operation of the FDDI ring uses a principle that is based on a parameter known as the Token Rotation Time, or TRT. Due to its dual ring architecture, FDDI has the ability to recover from link and station failures.
What is the advantage of FDDI over a basic Token Ring?
And FDDI speed can be improved. If the second ring is used as its own network, both rings can operate individually at speeds as fast as 200 Mbps. This feature is great for high bandwidth applications, though it lacks fault tolerance. Data signal integrity is another major advantage of FDDI networks.
Is Token Ring still used?
Once the center of a great technical debate in the 80’s and 90’s, the Token Ring vs. Ethernet wars are long settled. But it’s kind of surprising that Token Ring is still taught. The text for the class calls Token Ring the “second most popular technology” for connecting local area networks.
What do you mean by primary and secondary ring of FDDI?
FDDI networks are comprised of two physical paths, or “rings,” that transfer data in opposite directions. The primary ring carries data between systems, while the secondary ring is used for redundancy.
Is token-ring still used?
How many token can exist in a ring network?
one token
Because only one token exists in the network, it is easy to manage. This method has been standardized as IEEE 802.5 token-ring method. In IEEE 802.5, while a free token is processed bit by bit by using a shift register, the free token is changed to a busy one, after which a frame is issued.
Is FDDI an Ethernet?
At current 100 Mbps level, FDDI is more efficient with its high bandwidth, so it is better suited for applications requiring a higher bandwidth. In the other hand, FDDI has a longer latency than Ethernet. Therefore, for latency sensitive applications, Fast Ethernet is the better choice.
How many fiber ring are used in the FDDI cabling?
two fiber rings
The FDDI cabling consists of two fiber rings, one transmitting clockwise and the other transmitting counterclockwise.
What is the FDDI Token Ring network?
FDDI uses a timed token-passing technology similar to that of token ring networks as defined in the IEEE 802.5 standard. FDDI stations generate a token that controls the sequence in which other stations will gain access to the wire. The token passes around the ring, moving from one node to the next.
What is FDDI and how does it work?
It contains two token rings, a primary ring for data and token transmission and a secondary ring that provides backup if the primary ring fails. FDDI technology can also be used as a backbone for a wide area network (WAN).
What is the main function of the secondary ring in FDDI?
FDDI uses dual-ring architecture with traffic on each ring flowing in opposite directions called counter-rotating. The dual rings consist of a primary and a secondary ring. During normal operation, the primary ring is used for data transmission, and the secondary ring remains idle.
How many stations can be on a dual-ring FDDI network?
There can be up to 500 stations on a dual-ring FDDI network. The maximum circumference for an FDDI ring is 100 kilometers (or 200 kilometers for both rings combined), and there must be a repeater every 2 kilometers or less. Bridges or routers are used to connect the FDDI backbone network to Ethernet or token ring departmental LANs.
