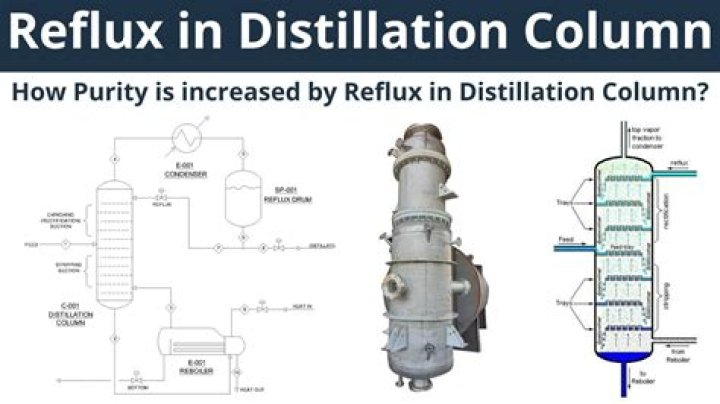

Reflux in industrial distillation Inside the column, the downflowing reflux liquid provides cooling and condensation of the upflowing vapors thereby increasing the efficiency of the distillation column.
How does reflux ratio affect separation?
The Minimum Reflux Ratio (R min) is the lowest value of reflux at which separation can be achieved even with an infinite number of plates. It is possible to achieve a separation at any reflux ratio above the minimum reflux ratio. As the reflux ratio increases, the number of theoretical plates required decreases.
Why high reflux can be disadvantages for column operation?
The reflux ratio will modify the slope of operation line. Increasing reflux ratio would act in reverse i.e, it would have a disadvantage of increase in duty of condenser and reboiler as load increases. This increases the operation cost of distillation column, however, more enrichment is achieved.
What happens to the cost of the column on increasing reflux ratio?
For a distillation column (Fig. 4), as reflux ratio increases, the total cost for the column (capital plus operating) initially decreases to a mini- mum and then starts increasing again. The minimum is an optimum (or economical) reflux ratio at which the total cost of the column is lowest.
How does increasing reflux ratio effect distillation?
The higher the reflux ratio, the more vapor/liquid contact can occur in the distillation column. So higher reflux ratios usually mean higher purity of the distillate. It also means that the collection rate for the distillate will be slower.
What is reflux ratio used for?
The reflux ratio, which is the ratio of reflux rate to distillate rate can influence separation efficiency. In total reflux mode, 100% of the streams are recycled back into the column.
What happens when reflux ratio decreases?
Minimum reflux ratio. As the reflux ratio is reduced, the distance between the operating line and the equilibrium curve becomes smaller.
How does reflux ratio affect distillation concentration?
The Reflux ratio is the ratio between the boil up rate and the take-off rate. The higher the reflux ratio, the more vapor/liquid contact can occur in the distillation column. So higher reflux ratios usually mean higher purity of the distillate. It also means that the collection rate for the distillate will be slower.
What is reflux How does it affect the design of distillation tower?
Reflux Conditions Physically, what this means is that more and more liquid that is rich in the more volatile components are being recycled back into the column. Separation then becomes better and thus less trays are needed to achieve the same degree of separation.
What happens if we increase reflux ratio?
What is the minimum reflux ratio?
The minimum reflux ratio Rm is the limiting reflux where the operating line either touches the equilibrium curve or intersects the equilibrium curve at the q-line. The minimum reflux ratio will require an infinite number of trays to attain the specified separation of xD and xB.
Is it possible to increase the reflux ratio of distillation column?
However, it would be at expense of less enrichment achieved than required. Increasing reflux ratio would act in reverse i.e, it would have a disadvantage of increase in duty of condenser and reboiler as load increases. This increases the operation cost of distillation column, however, more enrichment is achieved.
How does reflux ratio affect methanol purity?
Reflux ratio (R D = L/D) has a tremendous effect on both column tray efficiencies (at constant feed and distillate rates) and on the composition of the distillate and bottoms. A lower reflux rate greatly reduces the methanol purity of the distillate.
What is the reflux ratio on the bottom of the column?
At the bottom of the column, some of the liquid from the bottom tray (#6) is vaporized in a reboiler to generate vapor (the boilup) for the bottom tray. The reflux ratio is the ratio of reflux to distillate molar flows: (1) where R D is the reflux ratio, L is the reflux rate, and D is the distillate rate for both molar flows.
What factors affect the performance of a distillation column?
The performance of a distillation column is determined by many factors, for example: Some of these will be discussed below to give an idea of the complexity of the distillation process. The state of the feed mixture and feed composition affects the operating lines and hence the number of stages required for separation.
