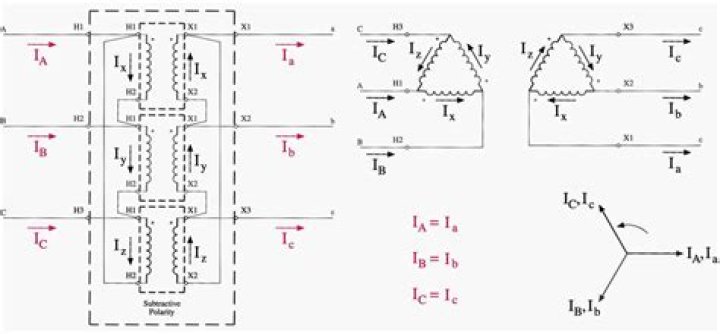

A Delta Delta is a 3-phase connection without a neutral you’re going the same voltage on the primary to the same voltage of the secondary but it’s used for high current applications like stated in this article.
What is meant by open delta connection?
: a usually temporary or emergency connection of a three-phase electrical circuit in which one of the three transformers is omitted and its load carried by the two transformers. — called also V-connection.
Where is open delta connection used?
This connection arrangement is also called the V connection. The open-delta connection is often used in an emergency when one of the three transformers in a delta-delta bank becomes defective or in maintenance work. When it is in good service, a consumer’s three-phase power supply can be restored as soon as possible.
What are the advantages of open delta connection?
Advantages: Open-deltas only require the utility to install two transformers. Future Capacity can be increased by simply installing a third similar sized transformer verses installing 2-3 larger transformers.
Why do we use Delta Wye in transformers?
Delta-wye transformers are common in commercial, industrial, and high-density residential locations, to supply three-phase distribution systems. The delta winding allows third-harmonic currents to circulate within the transformer, and prevents third-harmonic currents from flowing in the supply line.
What are the disadvantages of open delta connection?
Disadvantages: While the line to line voltages will be equal, the line to neutral voltages will have two phases being equal and one phase being 1.732 times larger. Unbalanced single phase loads can cause voltage fluctuations and additional, uneven transformer heating.
What is the disadvantage of an open delta transformer?
Even when open delta transformer is load balanced,this connection is prone to voltage unbalance.
What is tan delta testing of transformer?
Tan delta test is done in transformer to measure the insulation quality of transformer oil. Oil is considered as practical capacitor and therefore there will be some resistance in parallel. Dc current is allowed to flow through the insulation.
What is the Delta Connection in Transformers?
Delta-Star Transformer Connection Overview Delta-Star Connection of Transformer. In this type of connection, the primary connected in delta fashion while the secondary current is connected in star. Advantages of Delta-Star Connection. On primary side due to delta connection winding cross-section required is less. Disadvantages of Delta-Star Connection. Applications.
What is a Delta Delta transformer?
A delta-wye transformer is a type of three-phase electric power transformer design that employs delta-connected windings on its primary and wye/star connected windings on its secondary. A neutral wire can be provided on wye output side. It can be a single three-phase transformer, or built from three independent single-phase units.
