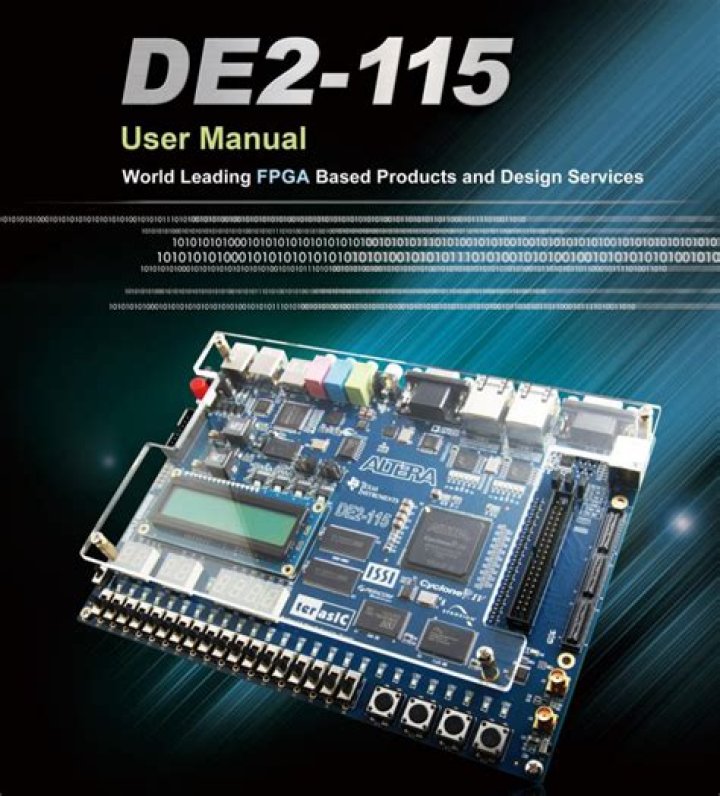

Altera DE2-115 Development and Education Board.
What is DE2 board?
The purpose of this exercise is to learn how to connect simple input and output devices to an FPGA chip and implement a circuit that uses these devices. The DE2 board provides 18 toggle switches, called SW17−0, which can be used as inputs to a circuit.
What is the name of the FPGA on the DE2-115 board?
The Cyclone EP4CE115 device equipped on the DE2-115 features 114,480 logic elements (LEs), the largest offered in the Cyclone IV E series, up to 3.9-Mbits of RAM, and 266 multipliers.
What is Altera DE2 board used for?
The purpose of the Altera DE2 Development and Education board is to provide the ideal vehicle for learning about digital logic, computer organization, and FPGAs. It uses the state-of-the-art technology in both hardware and CAD tools to expose students and professionals to a wide range of topics.
What is Altera DE2?
The purpose of the Altera DE2 Development and Education board is to provide the ideal vehicle for advanced design prototyping in the multimedia, storage, and networking. It uses the state-of-the-art technology in both hardware and CAD tools to expose designers to a wide range of topics.
What does FPGA stand for?
field programmable gate array
It is an acronym for field programmable gate array.
What is USB Blaster used for?
A USB port download cable that allows PC users to program and configure devices in-system.
How do I set up a USB Blaster?
Driver Installation for Altera USB-Blaster II
- Plug the USB-Blaster II cable into your PC.
- Open the Device Manager, and right-click on the Unknown device under the Other devices branch.
- Select Update Driver Software.
- Select Browse my computer for driver software.
