Unlike other air sampling equipment that simply draws air across a filter, the cyclone is a device that creates a centrifuge. This rapid air circulation allows larger particles to fall down into what’s known as a grit pot, while smaller, respirable-sized particles are captured by the filter cassette.
What is a cyclone sampler?
A new technique developed for the collection of airborne particles using a small reverse-flow cyclone. Particles are collected into a 1.5 ml eppendorf vial through a smooth vortex air flow of 16.6 l/min. Gentle capture of sample and capable of sterile handling.
What is microbial air sampler?
In active monitoring a microbiological air sampler physically draws a known volume of air through or over a particle collection device which can be a liquid or a solid culture media or a nitrocellulose membrane and the quantity of microorganisms present is measured in CFU (colony forming units)/m3 of air.
What are the devices used for air sampling?
A variety of different sampling devices are currently available to acquire air samples of microbial and viral particles [15]. These technologies include filters, impingers, impactors, and wet or dry cyclones.
What device is used for air monitoring for silica?
Airborne silica dust is measured by using a device called a sampling cyclone. This is a relatively small piece of equipment that clips on to a workers shirt and connected to a pump (usually attached to the worker’s belt or back pocket) that draws air from the surrounding environment.
What is an IOM sampler?
1 The IOM Sampler is a patented sampling cassette that houses a 25-mm reusable filter. It was developed by J.H. Vincent and D. Mark at the Institute of Occupational Medicine (IOM) in Scotland. See, Mark, D. and Vincent, J.H.,”A New Personal Sampler for Airborne Total Dust in Workplaces,” Ann.
Where would you use an air sampler?
Pharmaceutical manufacturing and industrial labs rely heavily on air samplers, prepared media and validation processes in order to meet compliance. Regularly measuring the quality of air in controlled environments is critical.
What are the devices can be used for sampling gases from ambient air?
Particulate matter in ambient air is measured by use of a “high-volume sampler,” which is an integrated filter holder-vacuum pump. A glass fiber filter is held in the filter holder, and a high flow rate of ambient air is drawn through it over a measured period of time.
How do you take a mold sample?
The samples are collected by pressing a clear adhesive onto the suspect surface and removing it with light pressure. Once removed from the surface, the sample is placed on a clear slide/surface and into an individual sample bag to be submitted to the laboratory.

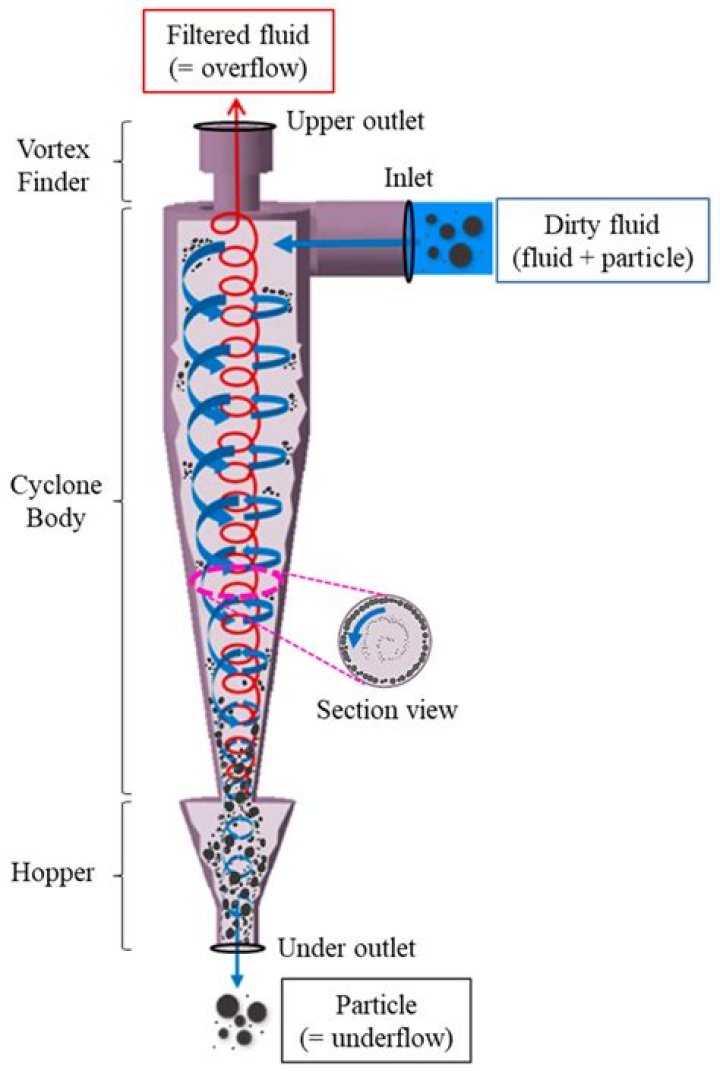

How does a cyclone sampler work?
Acyclone samplerdraws air into a cylindrical chamberwhere the air flow is rotated. Particles of a sufficiently large size move toward the walls of the chamber by centrifugal force, where they are collected. Dr. Chen’s innovation was to bring the air in from the top of the sample chamber rather than from the side as in a conventional cyclone.
What is the best portable biological air sampler?
The Coriolis Micro portable biological air sampler is a standard for testing air quality. Both indoors and outdoors, it’s the most efficient biological air sampler: It can take just 10 minutes to collect airborne particles using its cyclonic technology paired with a high suction rate.
What is a bio-contamination sampler?
Coriolis µ is a Biological Air Sampler for air bio-contamination control compatible with all analysis methods thanks to its liquid output. The Coriolis Micro portable biological air sampler is a standard for testing air quality.
How big is the Coriolis micro biological air sampler?
The Coriolis Micro biological air sampler weighs only 2.8 kg with its one-hour battery. Its small size makes it easy to transport, it is stable on its tripod, it is a perfect example of versatility and outdoor and indoor effective air quality monitoring.
