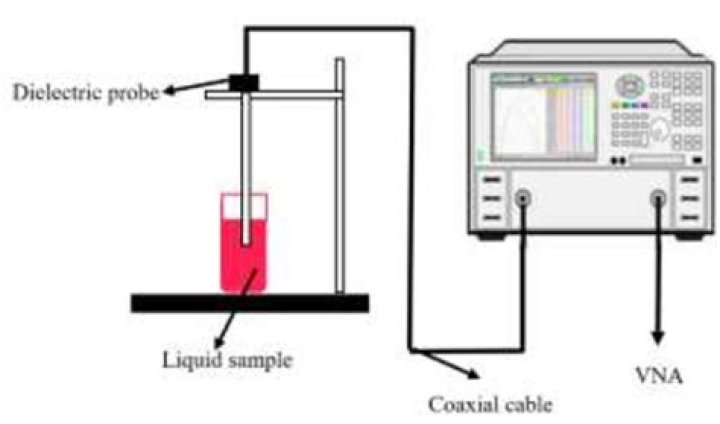

The open-ended coaxial probe is the method used in this thesis to measure permittivity and is basically a cut-off section of a transmission line and it’s used to measure the reflection coefficient of the material. The fields at the probe end “fringe” into the material and change as they come into contact with the MUT.
What is dielectric probe?
The dielectric probe kit is one of the most useful methods for electromagnetic characterization of materials in the broad frequency range. The complete system is based on a network analyzer, which measures the material’s response to RF or microwave energy.
How do you calculate the dielectric constant of a liquid?
The method for determination of dielectric constants of liquids consists in the successive measurement of capacitance, first in a vacuum, and then when the capacitor is immersed in the liquid under investigation. A cylindrical capacitor has been used here.
How do you measure permittivity?
The dielectric properties can be determined by first measuring the resonant frequency and quality factor of an empty cavity. The second step is to repeat the measurement after filling the cavity with the MUT. The permittivity or permeability of the material can then be computed using the frequency, volume and q-factor.
How do you pronounce Co Axial?
Also co·ax·al [koh-ak-suhl].
What is the permittivity of air?
1.0006
By definition, a perfect vacuum has a relative permittivity of exactly 1 whereas at STP, air has a relative permittivity of κair ≈ 1.0006.
Does permittivity change with frequency?
The magnitude of the dielectric permittivity decreases with respect to an increase in frequency. At sufficiently low frequencies, the dielectric permittivity is constant and real-valued.
