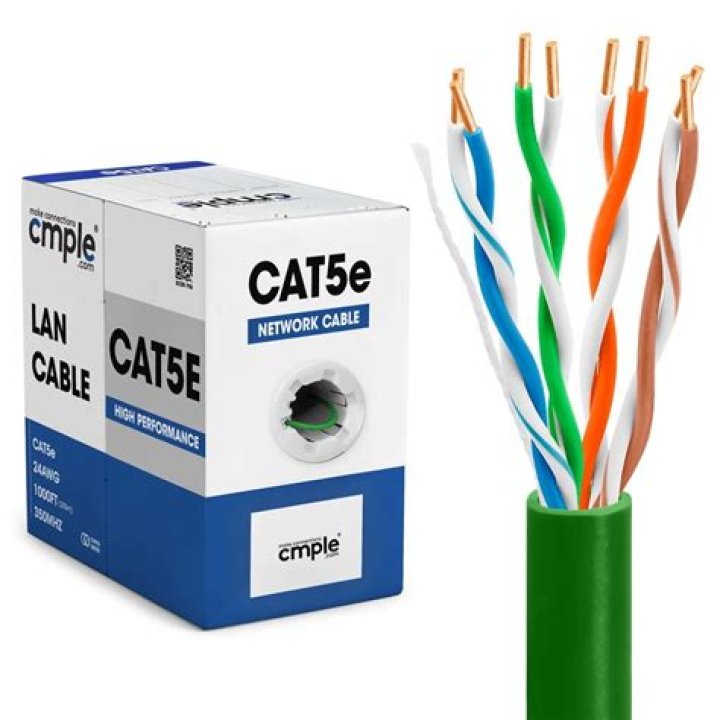

Shielded CAT5e cable is generally referred to as STP CAT5e or Shielded Twisted Pair CAT5e. This term, however, is used to refer to many different styles of shielding. The most common type of shielding uses what is called a screen.
Is Cat5 UTP or STP?
While even UTP (UTP: unshielded twisted pair) cables reduce some EMI, STP (shielded twisted pair) cables more effectively block interference. Cat5 and Cat6 shielded cables are augmented with a thin foil that serves to block EMI.
What type of cat cable is STP?
S/UTP: SHIELDED WITH UNSHIELDED TWISTED PAIRS. This cable construction has an overall braid screen with unshielded twisted pairs. This cable is often referred to as an STP, however this term should be used with caution due to other shielded cables also using this term.
What is STP Ethernet cable?
Shielded Twisted Pair (STP) STP cables are similar to UTP cables, where the wires are twisted together and then wrapped with a shielding or screening material which consits of foil wrapping or a copper braid jacket.
What is the difference between Cat5 and Ethernet?
Cat5E cables, for example, provide you with faster speeds. The ‘e’ in Cat5E stands for “enhanced.” “Although the Cat5 ethernet cable can handle up to 10/100 Mbps at a 100 MHz bandwidth (which was once considered quite efficient), the newer versions of Cat cables are significantly faster,” says FireFold.
Is Cat5e Ethernet?
While Cat5 Ethernet cable supports speeds up to 100 megabits per second, Cat5e supports networks up to 1 gigabit (1000 megabits per second). Another differentiator from plain Cat5, Cat5e comes in shielded varieties, reducing noise.
Should I buy UTP or STP?
STP cables are often used in situations nearby equipment causing EMI. UTP cables are suitable to be used in offices and homes. They are less expensive than STP cables. So if the interference or crosstalk is not your main concern, you are suggested to choose UTP cables for saving you cabling cost.
How do I know if I have Cat5 or cat5e?
Easiest way to tell cat5 and cat 5e apart is to look at the number of twists in the green pair. If the green pair has the same number of twists as the orange and blue pairs, then it’s cat5e, if it has the same number of twists as the brown pair, then it’s cat5.
Can I use Cat5 instead of cat7?
The Cat 7 cable is compatible with the Cat 6, Cat 5, and Cat 5 cable categories. It offers 90/100m 4-connector channels using shielded cabling and is designed to transmit signals at frequencies up to 600MHz. This way it allows the user to get maximum speed even with long cables.
What is maximum length for Cat5e STP cable?
Applications for Category 5 UTP and STP include voice (telephony) or data (up to 100 Mbps, or with certain technologies, 1000 Mbps). Cat 5 is sometimes used as a backbone; however is restricted to 100 meters in length. It is currently the most popular cabling for connecting workstations and horizontal cable runs due to its low cost, high bandwidth, relative ease of installation, and ease of termination with RJ-45 connectors.
What are the STP cable types?
F/UTP type of Shielded Twisted Pair (STP) cables.
Should you use Cat5e or cat6 for the business?
For most home network purposes, CAT5E should be more than sufficient, and is less expensive than CAT6 or 6A. If you’re networking for professional or business purposes, where performance and speed is of utmost importance, you may want to consider CAT6 or CAT6A.
Is Cat 5 cable the same as Ethernet cable?
Cat 5, a UTP cable, was the first ethernet cable that also supported video and telephone signals. TIA/EIA doesn’t recognize Cat 5 which is mostly used for 100Base-T and 1000Base-T networks. Cat 5 is not in use these days and has gone obsolete in most countries.
