In statistics, Box–Behnken designs are experimental designs for response surface methodology, devised by George E. P. Box and Donald Behnken in 1960, to achieve the following goals: Each factor, or independent variable, is placed at one of three equally spaced values, usually coded as −1, 0, +1.
What is Box-Behnken design used for?
Box-Behnken designs are used to generate higher order response surfaces using fewer required runs than a normal factorial technique, see [10]. This and the central composite techniques essentially suppress selected runs in an attempt to maintain the higher order surface definition.
Which is true for Box-Behnken design?

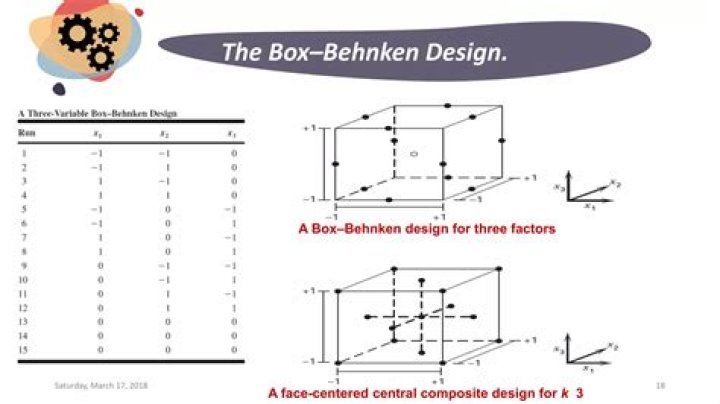

The Box-Behnken design is an independent quadratic design in that it does not contain an embedded factorial or fractional factorial design. In this design the treatment combinations are at the midpoints of edges of the process space and at the center.
What is the difference between box-Behnken and central composite design?
Box-Behnken designs usually have fewer design points than central composite designs, thus, they are less expensive to run with the same number of factors. Also unlike central composite designs, Box-Behnken designs never include runs where all factors are at their extreme setting, such as all of the low settings.
How do you use the box-Behnken design in Minitab?
Choose Stat > DOE > Response Surface > Create Response Surface Design. Under Type of Design, select Box-Behnken. From Number of continuous factors, select 3. Click Designs, and then click OK.
Why Is CCD better than BBD?
BBD vs CCD: If you end up missing any runs, the accuracy of the remaining runs in the BBD becomes critical to the dependability of the model, so go with the more robust CCD if you often lose runs or mismeasure responses.
What is the difference between box Behnken and central composite design?
What is D optimal design?
D-optimal designs are model-specific designs that address these limitations of traditional designs. A D-optimal design is generated by an iterative search algorithm and seeks to minimize the covariance of the parameter estimates for a specified model.
What is the difference between CCD and Box Behnken?
Central composite designs usually have axial points outside the “cube.” These points may not be in the region of interest, or may be impossible to conduct because they are beyond safe operating limits. Box-Behnken designs do not have axial points, thus, you can be sure that all design points fall within your safe …
What is the objective of DOE?
The objective of Design of Experiments (DOE) is to Establish optimal process performance by finding the right settings for key process input variables.
What is space filling design?
The Space Filling platform provides designs for situations with both continuous and categorical factors. For continuous factors, space-filling designs have two objectives: • maximize the distance between any two design points. • space the points uniformly.
What is a Box Behnken design?
Box–Behnken design. In statistics, Box–Behnken designs are experimental designs for response surface methodology, devised by George E. P. Box and Donald Behnken in 1960, to achieve the following goals: Each factor, or independent variable, is placed at one of three equally spaced values, usually coded as −1, 0, +1.
How many levels are there in a Box-Behnken model?
As the central composite design consists of five levels for each factor, it will be possible to test up to a fourth-order model. However, the Box-Behnken design consists of only three levels for each factor. Therefore, only a second-order model is possible for the Box-Behnken design.
What is boxbox Behnken response surface methodology?
Box Behnken Response Surface Methodology RSM Design and Analysis Example using Minitab & MS Excel Box-Behnken Design, BBD for the response surface methodology, RSM, is specially designed to fit a second-order model, which is the primary interest in most RSM studies.
What is the difference between CCD and Box-Behnken?
Moreover, the CCD is rotatable, while the Box-Behnken is nearly rotatable or rotatable for some specific designs. As the central composite design consists of five levels for each factor, it will be possible to test up to a fourth-order model. However, the Box-Behnken design consists of only three levels for each factor.
