ArtNET is the perfect way to send and receive many DMX universes or to connect multiple lighting consoles together. Since it uses the network to transmit and receive data, no special DMX cable and converter are needed. You only need those when you want to send actual DMX values to your lighting fixtures.
What is Art-Net protocol?
Art-Net is a royalty-free communications protocol for transmitting the DMX512-A lighting control protocol and Remote Device management (RDM) protocol over the User Datagram Protocol (UDP) of the Internet protocol suite. …
What is DMX node?
The SYMPL dmx Node is a two-channel DMX and RDM interface which can be used with e:cue’s lighting control software SYMPHOLIGHT. It provides two independent DMX/RDM universes for up to 1024 channels. The SYMPL dmx Node is supplied with voltage via an external adaptor or through Power-over-Ethernet (PoE).
What are DMX lights?
DMX (Digital Multiplex) is a protocol used to control devices such as lights or fog machines. The signal is unidirectional, meaning it only travels in one direction; from the controller or first light, all the way to the last.
Can you use CAT5 for DMX cable?
It’s generally acceptable to run DMX over Cat5 or Cat6 cable for up to 1000′. However, it’s important to remember that network signals can only travel 300′ – so if you go above that limit, label your cables carefully – computer networks will not work reliably at these lengths!
What is DMX wiring?
What is a DMX Cable? DMX cables are what we use for lighting. The cables’ purpose isn’t about carrying an audio signal, it’s carrying information or data that will communicate changes between lights and the source. The impedance required for this is 110 ohms.
What is Artnet DMX?
Artnet is a protocol that allows DMX to be sent over a standard IP network. This protocol is supported by pretty much every modern lighting console or software (paid and free). Read more here. DMX is the industry standard protocol for controlling professional show and DJ lighting – it is based on the RS485 protocol.

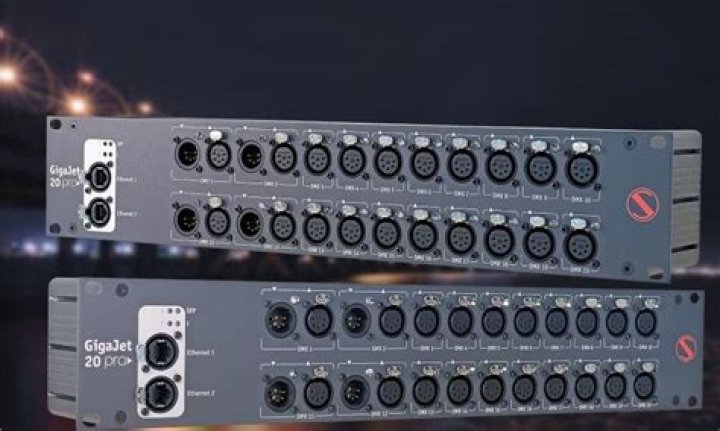

What is an Art-Net node?
There are shiny little boxes called as Art-Net nodes, these translate Art-Net messages to standard DMX signals and make it possible to control the fixtures from the computer – so, Art-Net nodes are the connection points between the computer and the lighting rig. These devices usually have one Ethernet and one or multiple XLR connectors.
How do I update my esp8266_artnetnode_DMX?
Download my esp8266_artnetnode_dmx code to your projects folder. You can use the bin file provided and flash OTA for the latest updates. OTA updates means no compiling of code is required. More on OTA later. This Instructable is based on version v1.0.5 but I’d recommend using the current latest release. See the last step more info.
What is the delay between DMX packets?
The delay is the (approximate) time between DMX packets. The default is 25ms, i.e. 40 packets per second, which is approximately fastest that you can transmit with the full 512 channels.
