Data Logging shield for Arduino This Arduino shield has been designed for Data Logging to an SD card and also has an onboard Real-Time Clock, so you can easily time stamp your readings, you can also use the Adafruit libraries which work great with these! This board is fully assembled with stackable header pins.
How do I log data in Arduino?
We have to write the Arduino program which can do the following.
- Read data from DTH11 Sensor (or any other data that you wish to log).
- Initialize the I2C bus to read data from RTC module.
- Initialize the SPI bus to interface the SD card module with Arduino.
- Store the Date, Time, Temperature and Humidity into the SD card.

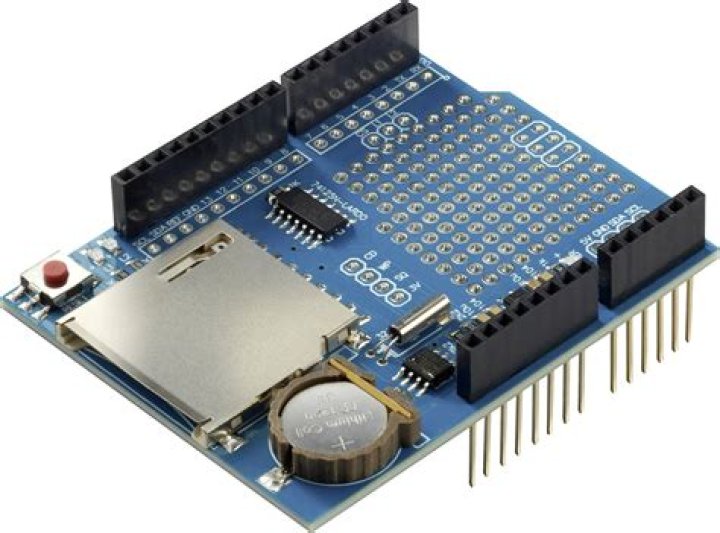

What is data logger shield?
The Adafruit Data Logging Shield for Arduino lets you save data to files on any FAT16- or FAT32-formatted SD card easily from an Arduino, which can then be read by most plotting, spreadsheet, or analysis programs.
What is Arduino Ethernet shield?
The Arduino Ethernet Shield 2 allows an Arduino Board to connect to the internet. It is based on the (Wiznet W5500 Ethernet chip). The Wiznet W5500 provides a network (IP) stack capable of both TCP and UDP. It is compatible with the Arduino Uno and Mega (using the Ethernet library).
What are the types of data logging?
What are the different types of data loggers?
- USB Data Loggers. For historical logging with manual offload.
- Bluetooth-enabled Data Loggers. For historical logging with Bluetooth data offload or connection through a gateway to the internet.
- Web-based Systems.
How do I save Arduino data to a CSV file using processing?
How To Save Data from Arduino To A . csv File Using Processing
- Introduction.
- First, Download and Install the following:
- Step 1: Read Data, Send to Processing via Serial Port.
- Step 2: Use Processing to Receive Data from Arduino, Write data to a Table, and Save Table to a .csv.
- Additional Resources.
How do I connect my Arduino Ethernet shield to the internet?
Plug the Ethernet shield into your Arduino making sure that the pin headers line up with the connect pins on the board and the shield. Now plug the Ethernet cable into the Arduino shield and then into your home router. Plug the USB cable into the Arduino and then into your laptop, PC or Mac.
How do I connect a data logging shield to Arduino Uno?
1. Solder together the data logging shield with the included male headers, using the Arduino Uno as a jig as needed. 2. Solder the DHT11 module’s + and – pins to ground and +5V on the prototyping area of the shield. 3. Attach the signal pin to the Arduino digital pin 4. 4. Wire L1 to Arduino pin 2 and L2 to pin 3 on the shield.
Can I use this shield with my Arduino?
Our latest version of this popular shield has all the features of the popular original, and is “R3” compatible so you can use it with just about any Arduino or compatible.
How do I connect my sd card logger to my Arduino?
Wire L1 to Arduino pin 2 and L2 to pin 3 on the shield. These are technically optional, but they provide visual feedback as your logger interacts with the SD card. 4. Plug the shield in and insert the RTC battery.
Why use an Arduino board for logging data?
Modern automated manufacturing equipment typically has this type of capability built in, but for a more general, cost-effective, and automatic logging tool, Arduino boards can be a great solution. The setup I’ll describe here uses an Arduino Uno along with the excellent Adafruit data logging shield.
