An electroscope is a device that detects static electricity by using thin metal or plastic leaves, which separate when charged. Electrical charges move to the metal and down to the foil leaves, which then repel each other. Since each leaf has the same charge (positive or negative), they repel each other.
How does an electroscope detect radiation?
The electroscope is thus capable of detecting by its increased rate of discharge a quantity of radium measuring 10-12 of a gramme. As an agent for detecting minutest quantities of radioactive matter, the electroscope is far more sensitive than the spectroscope.
What is the purpose of an electroscope?
Electroscope, instrument for detecting the presence of an electric charge or of ionizing radiation, usually consisting of a pair of thin gold leaves suspended from an electrical conductor that leads to the outside of an insulating container.
What happens when you touch an electroscope?
When the positively charged electroscope is touched, its charge becomes grounded (or neutralized). The negatively charged electrons enter the electroscope and neutralize the positive charge. As the electroscope loses its charge, the needle relaxes back to its naturally upright position.
Why is electroscope important?
The electroscope is an early scientific instrument used to detect the presence of electric charge on a body. It detects charge by the movement of a test object due to the Coulomb electrostatic force on it. The electroscope was the first electrical measuring instrument.
What are the types of electroscope?
An electroscope is a scientific instrument that is used to detect the presence and magnitude of electric charge on a body. There are three classical types of electroscopes: pith-ball electroscope (first), gold-leaf electroscope (second), and needle electroscope (third).
What happens when a negatively charged electroscope is touched by a human body?
When a negatively charged electroscope is touched, electrons leave the electroscope to the ground. When touched by a larger conducting material (in this case, a person), the electrons have an opportunity to spread out even further by using the vast space of the ground.
What will happen to the electroscope needle when I push the cages together?
(question with in the video) What will happen to the electroscope needle when I push the cages together? When we bring the two halves together, we observe that the electroscope discharges, just as in the video.

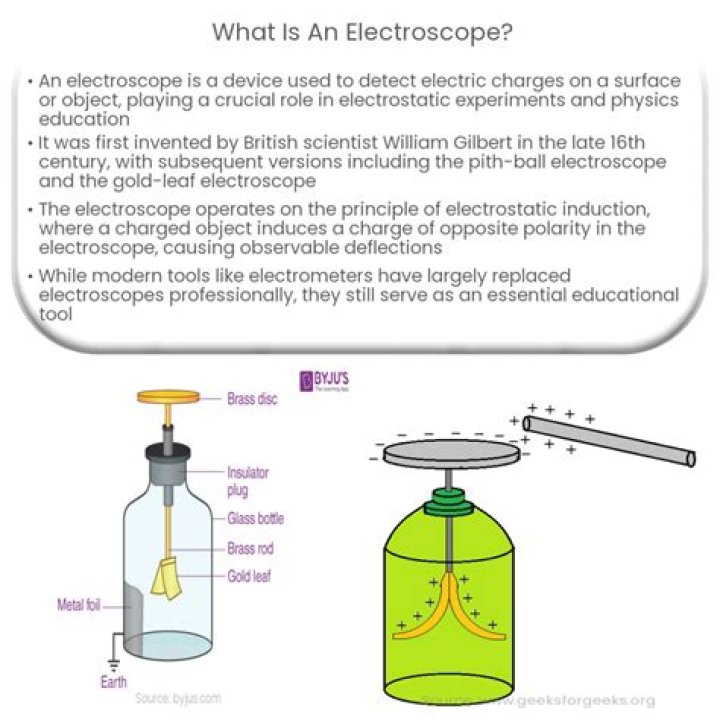

An electroscope consists of a vertical metal rod that sticks out of a glass enclosure; a piece of plastic prevents electric charge from going from the metal rod and metal leaves at the bottom on to the cylindrical enclosure, which is usually metal as well.
How does a simple electroscope work?
Working of Electroscope An electroscope is made up of a metal detector knob on top which is connected to a pair of metal leaves hanging from the bottom of the connecting rod. When the charge is negative, the electrons in the metal of the electroscope repel and move toward the leaves on the bottom.
How does an electroscope with leaves work?
A negatively charged rod near the plate attracts positive charges at the plate and repels negative ones to the leaves. The leaves repel each other and diverge to indicate the presence of a charge. The leaves would again diverge if instead a positively charged rod were brought near the plate.
What is an electroscope and how is it charged?
The electroscope is most commonly used as a charge-detecting device. In the induction process of charging, a charged object is brought near to but not touching the electroscope. The presence of the charged object above the plate of the electroscope, induces electrons within the electroscope to move accordingly.
How can I make a homemade electroscope at home?
You can build your own electroscope at home using simple things you can find around the house, such as:
- a glass jar,
- 2 little pieces of aluminium foil cut into small round shapes (and you need to put a whole in one end of each foil);
- A copper wire (spiral one of the ends of the wire to make a large surface area);
What is the main purpose of an electroscope?
What happens to the electrons in an electroscope?
Working of Electroscope 1 When the charge is positive, electrons in the metal of the electroscope are attracted to the charge and move upward out… 2 When the charge is negative, the electrons in the metal of the electroscope repel and move toward the leaves on the… More …
How does a metal rod in an electroscope work?
The metal rod passes through the jar with a stopper that is not capable of conducting electricity. When a charged object is brought near the metal rod, both strips repel each other and resemble an inverted V. The strips repel each other because they have acquired a like charge.
How are the leaves on an electroscope connected?
An electroscope is made up of a metal detector knob on top which is connected to a pair of metal leaves hanging from the bottom of the connecting rod. When no charge is present the metals leaves hang loosely downward. But, when an object with a charge is brought near an electroscope, one of the two things can happen.
What makes up the top of an electroscope?
An electroscope is made up of a metal detector knob on top which is connected to a pair of metal leaves hanging from the bottom of the connecting rod. When no charge is present the metals leaves hang loosely downward.
