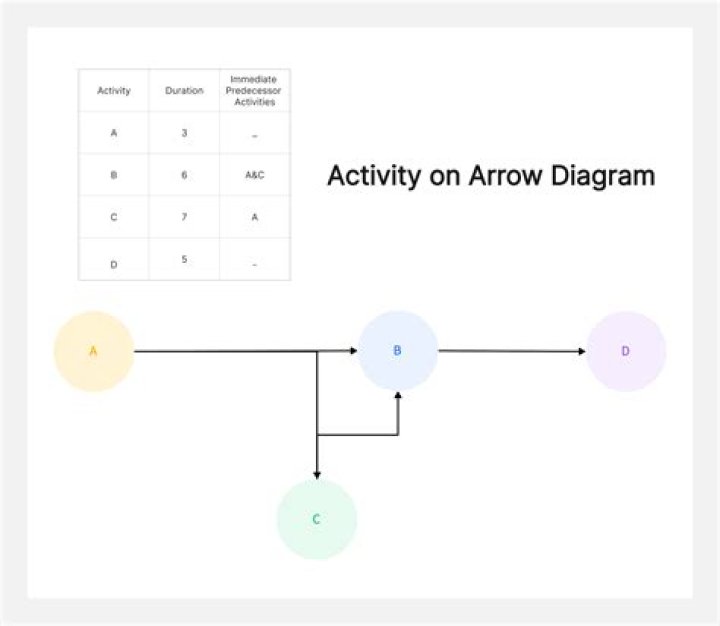

Activities are shown on arrows in activity on arrow diagrams. In activity on arrow diagrams, arrows are used to show activities. In activity on arrow diagrams, nodes are called events. First node is always the “START” event and last node is the “END” event.
What is an activity in a network diagram?
An activity in a network diagram shows the sequential relationsips of activities using arrows and nodes. The boxes represents the nodes.
What is activity on node diagram?
Activity-on-node is a project management term that refers to a precedence diagramming method which uses boxes to denote schedule activities. An activity-on-node diagram can be used to provide a visual representation of the network logic of an entire project schedule.
What is activity on arrow AoA and activity on node AoN?
Both activity on arrow (AoA) and activity on node (AoN) come under the Program Evaluation and Review Technique (PERT), which is a well-known method that is used to analyze various tasks when it comes to completing a project, especially when it comes to the time that is required to complete each task and the minimum …
What is the use of activity diagram?
An activity diagram shows business and software processes as a progression of actions. These actions can be carried out by people, software components or computers. Activity diagrams are used to describe business processes and use cases as well as to document the implementation of system processes.
What is an arrow diagram in math?
An arrow diagram is defined as a process diagramming tool used to determine optimal sequence of events, and their interconnectivity. It is used for scheduling and to determine the critical path through nodes.
What is activity in network analysis?
Network analysis is the general name given to certain specific techniques which can be used. for the planning, management and control of projects. Activity. Any individual operation, which utilizes resources and has an end and a beginning, is called. activity.
What is an activity in network?
activity network (activity graph) A graphical method for showing dependencies between tasks (activities) in a project. The network consists of nodes connected by arcs. The longest path through the activity network gives the completion time for the project represented by the network.
What is the important of drawing an activity on arrow AOA diagram in finding a critical path?
The arrow diagram lets you calculate the “critical path” of the project—the flow of critical steps where delays can affect the timing of the entire project and where addition of resources can speed up the project.
Is CPM AOA or Aon?
Is it mandatory to use activity on node (AON) for CPM problems and activity on arrow (AOA) for PERT problems? We know that CPM uses activity oriented network (since nodes represent activities) and PERT uses event oriented network (since nodes represent events).
Why is activity diagram needed?
An activity diagram is used by developers to understand the flow of programs on a high level. It also enables them to figure out constraints and conditions that cause particular events. A flow chart converges into being an activity diagram if complex decisions are being made.
