Telemotor control is a hydraulic control system employing a transmitter, a receiver, pipes and a charging unit. The pumped fluid passes through piping to the receiver and forces the telemotor cylinder unit to move. The suction of fluid from the opposite cylinder enables this movement to take place.
How does a marine steering system work?
The helm is responsible for converting the rotating motion of the steering wheel into a push-pull action on the cable. This cable directs the rudder to move left or right to steer the boat in the skipper’s desired direction. Most helms are rotary and use gears to move the rudder.
What is floating lever in steering?
When wheel order is starboard, the telemotor control moves the floating lever to A2 and the floating lever controls the pump discharge according to the feedback received from the hunting lever.
What is the function of the receiver in steering gear?
Working of the Steering Gear The Receiver conveys this order to the Control Unit, also located in the steering gear compartment, via linear motion.
What is marine steering system?
marine. A system used for of steering the ship. It is in constant use when the ship is underway, and any failure or malfunction may result in disaster. The steering system usually consists of: a steering gear, a control equipment, a rudder carrier, a rudder and a rudder horn.
What is a boat steering wheel called?
The steering wheel on a boat is called the ship’s wheel or boat’s wheel. In modern times, it is most commonly referred to as the helm, rather than steering wheel.
What are the two parts that comprises the Telemotor unit?
Telemotor unit comprises of two parts namely, Transmitter and Receiver. The Transmitter is located on the navigation bridge in the form of a wheel, which transmits the given order to the Receiver located in the steering gear compartment, by turning the steering wheel.
What are the three 3 types of steering system onboard the vessel?
Types of Steering Gears On Ships
- Hydraulic.
- Electro-hydraulic type.
What is a telemotor control system?

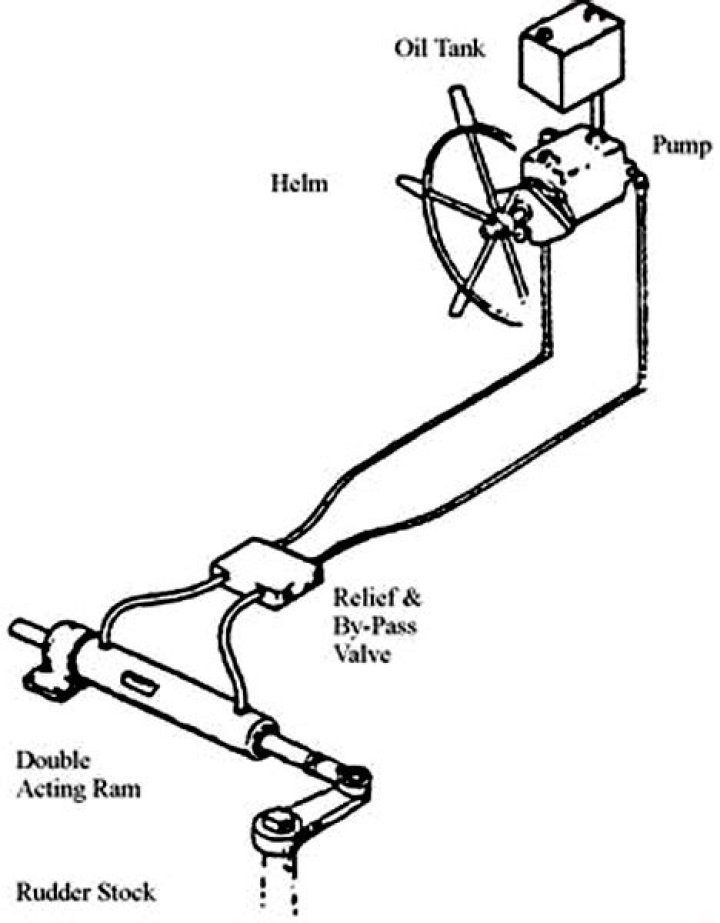

Ships steering gear telemotor control Telemotor control is a hydraulic control system employing a transmitter, a receiver, pipes and a charging unit. The transmitter, which is built into the steering wheel console, is located on the bridge and the receiver is mounted on the steering gear.. …..
How does a telemotor work on a ship?
Telemotor Control for Ships Steering Gear The steering gear provides a movement of the rudder in response to a signal from the bridge. The total system may be considered made up of three parts, control equipment, a power unit and a transmission to the rudder stock.
What type of steering system does a telemotor have?
The Telemotor is generally hydraulic type, electric type or, as is the case with modern steering systems, it could be electro-hydraulic type. In olden days, Telemotors were purely mechanical type consisting of linkages and chains with sprockets. As they were operated manually, they required very healthy sailors…
Where is the charging unit located in a telemotor system?
The charging unit is located near to the receiver and the system is charged with a non-freezing fluid. The telemotor system is shown in Figure 12.4. Two rams are present in the transmitter which move in opposite directions as the steering wheel is turned.
