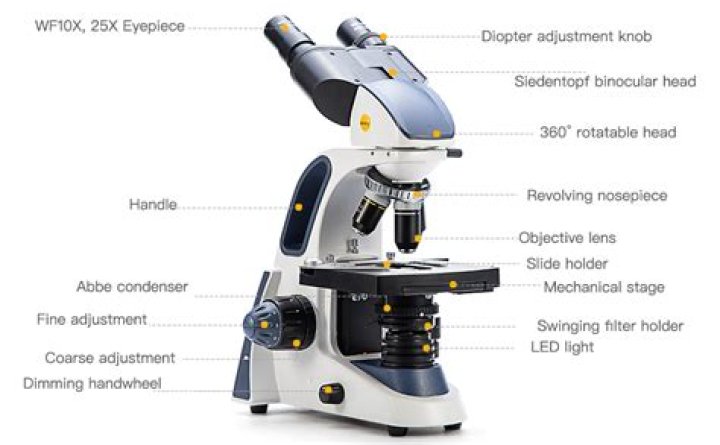

The Siedentopf head on a microscope enables you to easily adjust the distance between the eyepieces (called the interpupillary distance) without losing focus on the specimen. Other types of binocular heads, like the sliding head, can slightly lose focus when you adjust the eyepieces to make them more comfortable.
What is the binocular head?
Binocular Head: A microscope head with two eyepiece lenses, one for each eye. Generally this term is used in describing a high power (compound) microscope. In a compound microscope with a binocular head, there are two eyepiece lenses but still only one objective lens, so you will not get stereo vision.
What does Siedentopf mean?
Brief Description. Essentially, the term Siedentopf is used to refer to the method through which interpupillary distance of a microscope can be changed without affecting focus. With the Jentsch, changing the interpupillary distance typically involves moving the eye tubes closer or apart in a linear manner.
What is the name given to how much of an object or specimen you can see when you look down the microscope?
Field of View: Sometimes abbreviated “FOV”, it is the diameter of the circle of light that you see when looking into a microscope. As the power gets greater, the field of view gets smaller.
What do you clean microscope lenses with?
Dampen a cotton swab with 1 to 2 drops of lens cleaning solution. A cotton swab will help you clean the surface of a concave lens, which curves inward. Be sure to use a lens cleaning solution, or a solvent like acetone or xylol. If you’re using a solvent like acetone, take care not to get it on any plastic parts.
Which is the shortest objective lens?
4x
A scanning objective lens that magnifies 4x is the shortest objective and is useful for getting a general overview of a slide. A low-power objective lens magnifies 10x, but remember that it is coupled with an eyepiece lens, so the total magnification is 10x times the power of the eyepiece lens.
What are stage clips?
Stage with Stage Clips: The flat platform where you place your slides. Stage clips hold the slides in place. If your microscope has a mechanical stage, you will be able to move the slide around by turning two knobs. One moves it left and right, the other moves it up and down.
What will you do if you see two circles instead of one circle under the microscope?
When you have either closed or opened the eyetubes correctly, the two circles will merge perfectly. Another test is to rotate your head slightly left or right, and this will separate the two circle fields as shown in B above depending on the degree of rotation.
What are the advantages of using a compound microscope?
The advantages of using compound microscope over a simple microscope are: (i) High magnification is achieved, since it uses two lenses instead of one. (ii) It comes with its own light source. (iii) It is relatively small in size; easy to use and simple to handle.
Can you use 100x objective without oil?
Never use the 100x objective without using immersion oil. When you have correctly brought your slide into focus up to 40x (step 3), then: a. Turn the nosepiece half-way between the 40x and 100x objectives.
What is a Siedentopf binocular head?
The term Siedentopf binocular head is typically used to describe the microscope head of certain microscopes, which is different and comparably better than other microscope heads. This is named after Henry Siedentopf, who was a pioneer in the field of microscopy and microphotography and the co-inventor of the fluorescence microscope.
What makes Siedentopf binocular compound microscopes better?
With Siedentopf binocular compound microscopes, this feature makes the microscope better in comparison to others that do not have it. With these types of microscopes, the binocular head is different from other types of sliding binocular heads in that it is possible to adjust the eyepieces up and down in a circular movement.
What are the features of the Siedentopf 10x and 25x?
Features interchangeable wide-field 10X and 25X eyepieces mounted into a swiveling Siedentopf head (lockable in any position), allowing for quick adjustments to suit different interpupillary distances without loss of focus.
How do you adjust the interpupillary distance on a Siedentopf?
Normally adjusting involves sliding the eyepieces closer or further apart. With the Siedentopf head, the interpupillary distance is adjusted by simply rotating the eye tubes about a central axis. The axis also has a distance scale, allowing for users to know which point is suitable for them for future use.
