Elevator Shunt Trip is a function that involves shunting the breaker that controls the elevator equipment prior to the release of the automatic sprinkler systems. It is important to understand that not any heat detector within the facility will be required to activate the elevator shunt trip procedure.
How does a shunt trip work on a breaker?
Shunt trip breakers essentially provide an off switch remotely or a direct link to a system outside the main breaker. For instance, when smoke triggers a smoke detector, the breaker trips automatically. This cuts the power to electrical equipment at the same time the smoke detector triggers the sprinkler.
What is shunt release in circuit breaker?
Shunt release is an accessory for remote control of opening. Apply a specified voltage to the shunt trip coil, and the circuit breaker will trip and open. Shunt releases are commonly used in remote automatic power-off control, and are used for remote operation of low-voltage circuit breaker opening control.
Does an elevator need a shunt trip breaker?
2 (Safety Code for Elevators and Escalators) and the NEC 620.51(B) require power to an elevator be shut down prior to the release of water in the elevator shaft or machine room. This is typically accomplished by a shunt-trip device. NEC 620.16(B) and 110.10 require a sufficient SCCR for the available fault current.
How does a shunt work?
To help drain the extra CSF from your brain, a VP shunt will be placed into your head. The VP shunt works by taking the fluid out of your brain and moving it into your abdomen (belly), where it’s absorbed by your body. This lowers the pressure and swelling in your brain.
What is shunt relay?
Normally-closed electrically-held relay to be wired in parallel with a wall switch. Manually controlled emergency lighting will be automatically shunted on during a power outage.
How do you tell if a breaker is bad with a multimeter?
Touch the black or neutral probe of the multimeter to the grounded box. Read the voltage on the multimeter. If there is no voltage reading, then the breaker is bad and needs to be replaced.
What do you set a multimeter to check a breaker?
To check the resistance of a circuit breaker, set your multimeter in ohms or resistance settings. Then put one lead in the clip or supply terminal and the other to the screw terminal. It should have a resistance reading when you turn on the breaker and no rating when you turn it off.
What is shunt protection?
What is a Shunt connected surge protection device (SPD)? December 16, 2019. It is the simplest form of power line protection. Shunt SPDs are connected in parallel, passing dangerous surges quickly to earth whilst clamping the voltage level to protect downstream equipment.
How does a shunt trip a circuit breaker?
The shunt trip move able rod hit the tripping point or disconnecting point of circuit breaker internally and the breaker become off or trip.
What do you need to know about shunt trip accessories?
Shunt trip accessory designed for your existing circuit breaker model. A circuit breaker compatible with your shunt trip accessory if your current breaker isn’t compatible with any shunt trip accessories. An emergency stop switch if you want to install a kill-switch button. Not all circuit breakers accept shunt trip accessories.

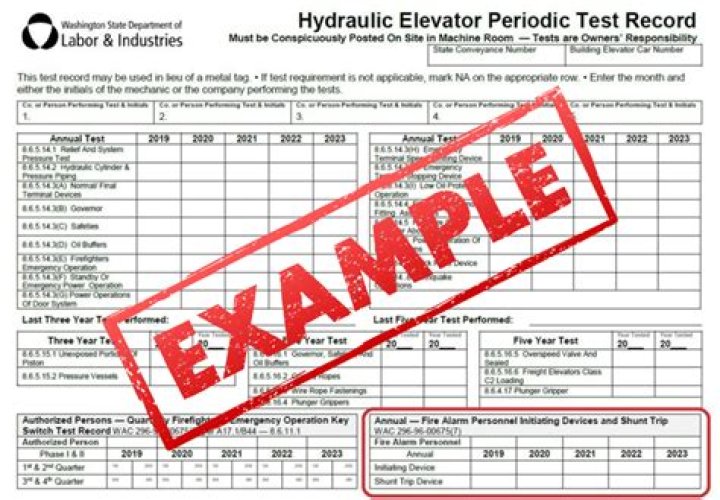

How to test an elevator shunt trip?
You can test the shunt trip of an elevator, but you should only do so with an elevator tech on site. State kinda matters. But anyways, heats in the shaft and/or elevator machine room will usually just trip the facp and trip the main breaker feeding the elevator controller. You can simply just reset the facp and reset the breaker for the elevator.
How do you install a shunt trip relay?
Mostly, installing a shunt trip relay requires that the breaker and the shunt be from the same maker. Also, not all breaker models are compatible with this accessory. Once you’re sure that your system can take a shunt trip accessory, installation is pretty much straightforward. You can watch this video by Aaron CBIONE for some tutorials.
