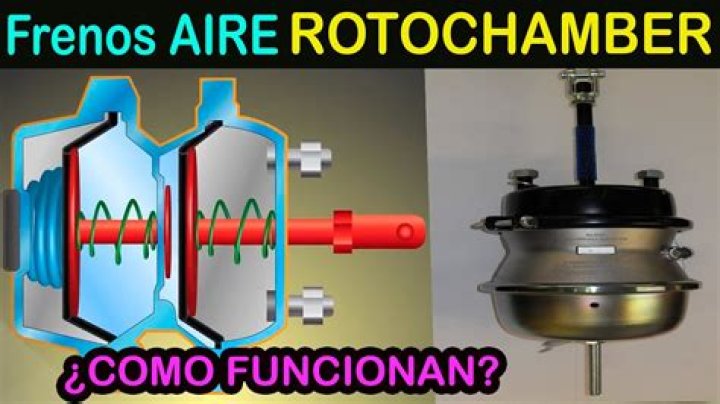

The Rotochamber is an actuator which converts the energy of air pressure into mechanical force. The rolling type diaphragm provides long life and gives a constant output force throughout the entire stroke. One end of the diaphragm is clamped to the inside wall of the body by the outer clamp.
How big is Wabco?
In 2017, WABCO reported sales of $3.3 billion and has nearly 15,000 employees in 40 countries. As a customer-centric organization, WABCO continues to significantly expand its field sales and service support teams.
How does an air over hydraulic braking system work?
What Are Air Over Hydraulic Brakes? This brake system works by converting control line air pressure from the foot brake valve into hydraulic pressure to operate wheel cylinders or calipers and applying brakes. Foot brake valve supplies control line pressure directly to the pneumatic piston.
What is airbrake chamber?
Air brake chambers are round metal containers, located at each wheel, where compressed air is converted into mechanical force to apply the brakes and stop the vehicle. A service brake chamber contains a flexible rubber disc called a diaphragm, a metal rod called a pushrod and a return spring.
What is the function of a rotochamber?
The rotochamber is an actuator which converts the energy of air pressure into mechanical force. The type number of the rotochamber indicates the actuator’s diaphragm effective area (Type 30 – 30 sq. in. of diaphragm) and the various sizes available give a wide range of output force and length of stroke.
What is WABCO technology?
On-highway and off-road, WABCO technology enhances safety for drivers, passengers and pedestrians. Across a vast portfolio of control systems and foundation braking support, WABCO trailer safety products have proven, durable and reliable solutions for trailers and fleets.
What is the right of revision in Wabco maintenance manual?
WABCO reserves the right to revise the information presented or to discontinue the production of parts described at any time. WABCO Maintenance Manual MM-0401 (Revised 08-18)
