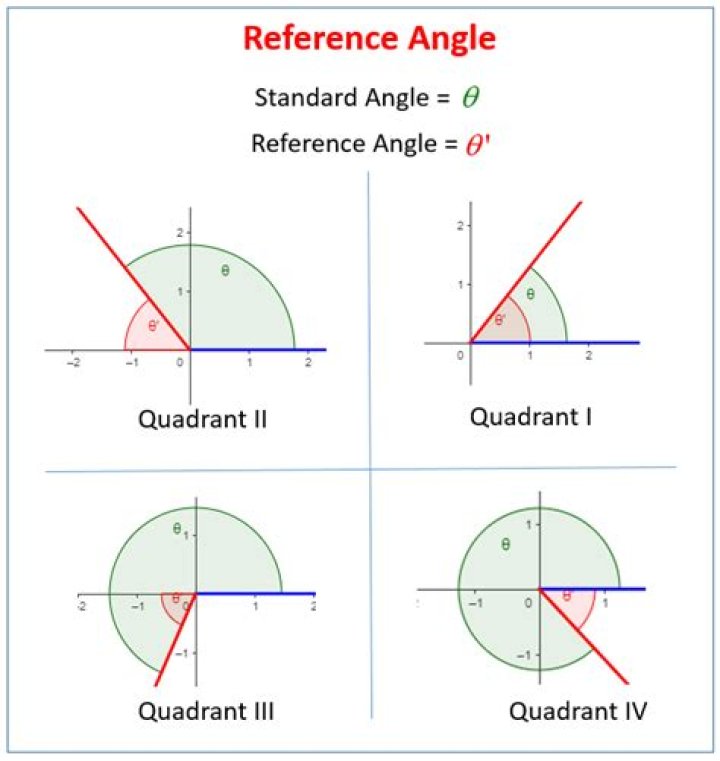

An angle’s reference angle is the measure of the smallest, positive, acute angle t formed by the terminal side of the angle t and the horizontal axis. Thus positive reference angles have terminal sides that lie in the first quadrant and can be used as models for angles in other quadrants.
What is reference angle and examples?
For example, 23∘ is in quadrant I, and its reference angle is 23∘ . Or, 157∘ is in quadrant II, and its reference angle is 180∘−157∘=23∘ 180 ∘ − 157 ∘ = 23 ∘ . Negative angles (strictly between 0∘ and −180∘ ) put you in quadrants III and IV. For example, −23∘ is in quadrant IV, and its reference angle is 23∘ .
What are the types of reference angles?
Reference Angle
| Quadrant | Angle θ | Reference angle α |
|---|---|---|
| II | 90˚ < θ < 180 ˚ | α = 180 ˚ – θ |
| III | 180˚ < θ < 270 ˚ | α = θ – 180˚ |
| IV | 270˚ < θ < 360 ˚ | α = 360 ˚ – θ |
What is a reference angle and how do you find it?
The reference angle is the positive acute angle that can represent an angle of any measure. The reference angle is always the smallest angle that you can make from the terminal side of an angle (ie where the angle ends) with the x-axis. A reference angle always uses the x-axis as its frame of reference.
What is a reference triangle?
A reference triangle is a triangle relative to which trilinear coordinates, exact trilinear coordinates, derived triangle, or other objects are defined in triangle geometry (Kimberling 1998, p. 155). The reference triangle is the polar triangle of the polar circle and Stammler hyperbola.
What’s the reference angle of degrees?
90° to 180°: reference angle = 180° – angle , 180° to 270°: reference angle = angle – 180° , 270° to 360°: reference angle = 360° – angle .
What is the reference angle of degrees?
What are reference angles used for?
The use of reference angles is a way to simplify the calculation of the values of trigonometric functions at various angles. With a calculator, it is easy to calculate the value of any function at any angle.
What is the reference angle in degree?
What is Meant by the Reference Angle? In mathematics, the reference angle is defined as the acute angle and it is measuring less than 90 degrees. It is always the smallest angle, and it makes the terminal side of an angle with the x-axis.
How do you calculate reference angle?
In this case, 250° lies in the third quadrant. Choose a proper formula for calculating the reference angle: 0° to 90°: reference angle = angle, 90° to 180°: reference angle = 180° – angle, 180° to 270°: reference angle = angle – 180°,
How do you find reference angles?
Reference angles are useful in trigonometry. If you want to find the sine or cosine of any arbitrary angle, you have to first find its reference angle in the first quarter. Then, you can find the trigonometric function of the reference angle and choose a proper sign.
How do you find a reference angle?
Every positive angle in quadrant I is already acute…so the reference angle is the measure of the angle itself: To find the reference angle measuring x ° for angle in Quadrant III, the formula is $$ 180 – x^{\\circ} $$. To find the reference angle measuring x ° for angle in Quadrant III, the formula is $$ x – 180 ^{\\circ} $$.
How to find the reference angles?
If necessary,first “unwind” the angle: Keep subtracting 360 from it until it is lies between 0 and 360°. (For negative angles add 360 instead).
