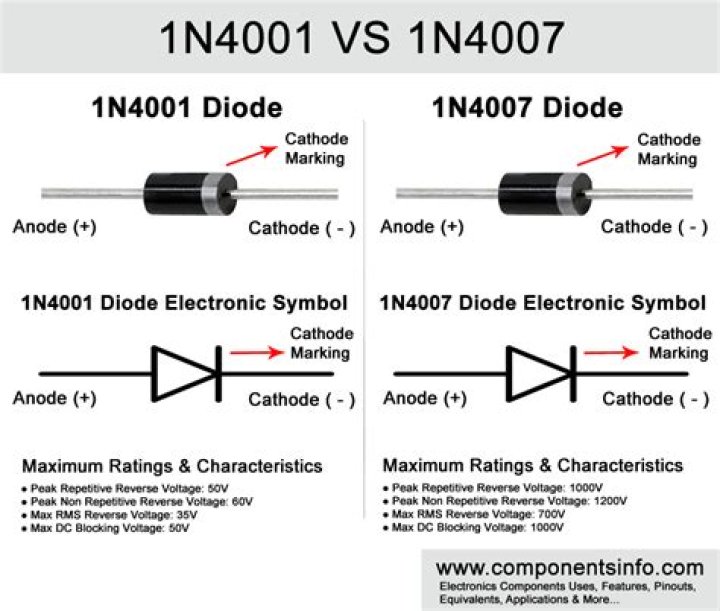

The 1N400x (or 1N4001 or 1N4000) series is a family of popular one-ampere general-purpose silicon rectifier diodes commonly used in AC adapters for common household appliances. Its blocking voltage varies from 50 volts (1N4001) to 1000 volts (1N4007).
What is the difference between 1N4004 and 1N4007 diodes?
The differences between 1N4004 and 1N4007 are the working peak reverse voltage who is 1000V for the 1N4007 instead of 280V for the 1N4004. You can use it in place without any problem like all 1N400X diodes rectifier.
What indicates 1 in 1N4007 diode?
This standard has been adopted globally now. In 1N 4007 the first part 1N indicates single junction semiconductor. 1N indicates 1 junction whereas N indicates the semiconductor diode . 4007 is the specific number to indicate the particular diode. From the electrical point of view, 1N 4007 is compatible with other rectifier diodes.
What is the voltage drop in diode in4007?
When the input voltage applied to the anode terminal is +ve as compared to the cathode terminal, the diode is said to be forward-biased. When this applied input voltage becomes greater than 0.6 volts, IN4007 diode acts as a short circuit. 0.6V is a forward drop voltage of 1N4007.
What is the function of rectifier diode?
Rectifier. A rectifier is an electrical device consisting of one or more diodes that allow the unidirectional flow of current.
What is inverter rectifier?
Inverter is a see also of rectifier. Rectifier is a see also of inverter. As nouns the difference between rectifier and inverter. is that rectifier is something that rectifies while inverter is something that inverts, or causes inversion.
