Definition of raked joint : a masonry joint from which the mortar is raked out to a specified depth while still green.
What is a raked joint used for?

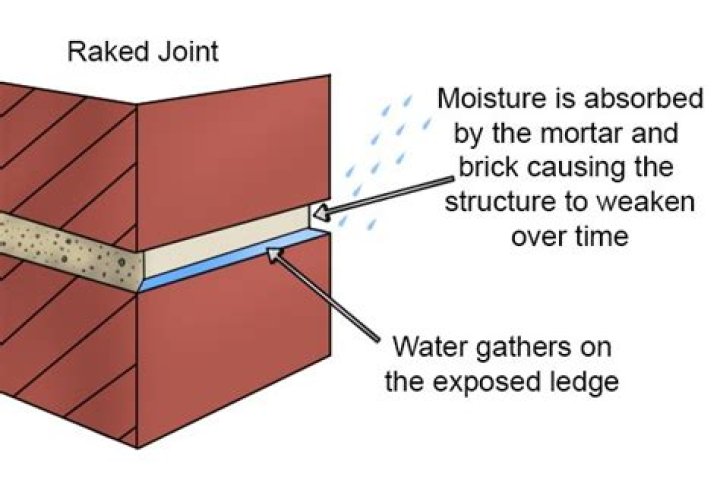

Raked mortar joints Ledges collect water as it runs down the wall allowing it to pool and enter the brickwork. Additional voids may open up, increasing the possibility of water penetration.
What is a raked brick joint?
Older brick and mortar walls commonly had raked joints, which are flat mortar joints slightly recessed from the front edge of the brick. Modern masonry joints often bring the mortar flush with the front edge to do a better job of sealing out moisture.
What is flush joint?
Definition of flush joint : a joint in masonry in which the mortar is finished flush at the surface.
Why is raking joints necessary?
In raked joints, the mortar is not compact against the surfaces of the joint. Instead, the front portion of the mortar joint is scraped out. Raking the mortar out can open up voids in the head and bed joints that increase water penetration.
How do you scrape old pointing?
Existing mortar joints can be cut-back using either chisels, rakes or grinders.
- Soft can be removed using hammer and chisel or a mortar rake.
- Cutting wheels are always used to remove hard pointing and also where joints are over-filled.
What is mortar raking?
Mortar rakes are gritted bits or blades designed to remove mortar from in between bricks or masonry. They use different types of grit to grind away at the material, and the non-bladed type are ideal for precise mortar removal.
What is beaded pointing?
In Beaded Pointing, the mortar pressed into a masonry joint and concave grooves are formed into a joint by using a steel tool having a concave shape. Beaded pointing gives an excellent appearance to the mortar joint but is liable to get damaged quickly.
Is flush pointing good?
Flush Pointing It does not give good appearance. But, flush pointing is more durable because of resisting the provision of space for dust, water etc., due to this reason, this method is extensively used.
What is the meaning of raked joint?
Definition of raked joint. : a masonry joint from which the mortar is raked out to a specified depth while still green.
Should you use raked or tooled mortar joints?
Many references strongly recommend using tooled mortar joints rather than raked joints. On many projects, however, raked joints are needed to match the historic fabric of the area. If this mortar has worked effectively in the past, what is the problem with using raked mortar joints in new buildings?
How to repair raked joints in concrete?
Pull the board straight down to created a raked joint. Remove any mortar you pull away from the joint. Repeat this process for all the vertical joints, and then move the rake from side to side do all the horizontal joints. When you finish this step, the repaired joints should all be the same depth and look like the original raked joints.
How do you make a raked joint with nails?
Insert the nail head on the rake you made into a vertical joint. Pull the board straight down to created a raked joint. Remove any mortar you pull away from the joint. Repeat this process for all the vertical joints, and then move the rake from side to side do all the horizontal joints.
