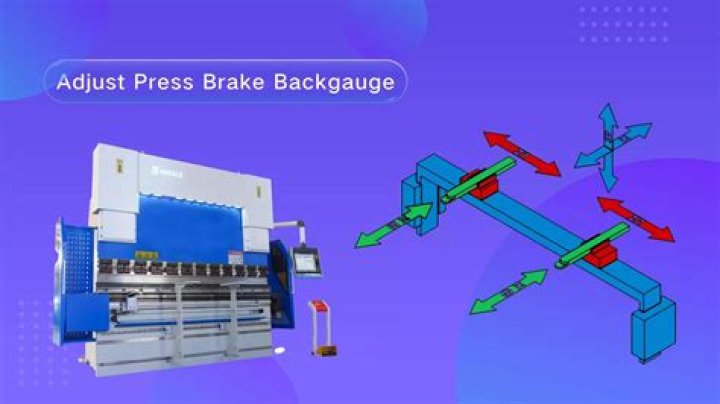

A backgauge is a mechanical system, normally attached to a brake press. Its main function is to interface with the brake press computer numerical control (CNC), moving along several different axes in order to precisely position a piece of metal for forming.
What are brake presses used for?
A press brake is a machine pressing tool for bending sheet and plate material, most commonly sheet metal. It forms predetermined bends by clamping the workpiece between a matching punch and die.
What is a mechanical press brake?
Mechanical press brakes operate via a motor inside the device. This motor spins a large flywheel at high speeds. The machine operator controls the flywheel through a clutch, which then sets the rest of the parts into motion to bend the metal.
Is it press break or brake press?
Press brakes, also known as Brake Presses or just brakes are machines used to bend sheet metal using tooling known as dies and punches. The Brake Press typically has an upper and lower section.
How does a CNC press brake machine work?
A press brake is a piece of manufacturing equipment that is used to bend sheet metal. A press brake bends sheet metal by lowering a punch onto sheet metal that has been positioned on top of a die. The metal may be bent several times by a press brake until the desired form has been achieved.
Why is it called a press brake?
Today, both electric and mechanical press brakes help make it easier to shape sheet metal. When it was invented, it was a tool for pounding and crushing. Eventually, the name brake because synonymous with the machine, and thus, the device was called a pressing machine.
Why is it called a brake press?
What is metal braking?
A metal brake is the tool for bending custom metal flashing and decorative trim. Every siding contractor and most roofers have one. But a brake can come in handy for all sorts of projects. It seems like an imposing tool to master, but it’s really just a large clamp with a moving hinge.
What is a metal bender called?
brake
A brake is a metalworking machine that allows the bending of sheet metal. A cornice brake only allows for simple bends and creases, while a box-and-pan brake also allows one to form box and pan shapes. It is also known as a bending machine or bending brake or in Britain as a sheet metal folder or just a folder.
What is CNC press?
Computer numerically controlled (CNC) bending is a manufacturing process that is carried out by CNC press brakes (also known as CNC brake presses). These machines can bend sheet metal work from just a few mm across to sections many metres long on the largest industrial machines.
Why is a metal bender called a brake?
The term “brake,” as used in modern sheet metal fabrication, comes from the Middle English verb breken, or break, which meant to bend, change direction, or deflect. You could also “break” when you drew back the string of a bow to shoot an arrow. You could even break a beam of light by deflecting it with a mirror.
How does the CNC 150 backgauge control work?
The CNC 150 Backgauge Control will control any of the backgauge configurations allowing the operator to form the complete workpiece in one handling by controlling the backgauge, ram depth and gauge bar height of each bend.
What are the advantages of a backgauge gauge?
You now can take advantage of the up-and-down motion of the backgauge fingers, a nice option if you’re doing odd-shaped pieces or performing a lot of die changes per day. Having the R axis means you no longer have to walk around to the back and crank the gauging bar up and down.
What is the back gauge on an ironworker used for?
It provides convenient front mounted controls for the operator to adjust the back gauge … Fitted to the back of the Ironworker, the 48 inch Back Gauge accessory provides an adjustable stop for the angle and bar shear stations of your… …powered back gauge fits the National 96 inch hydraulic shear.
What is backgauge retract on pinch point?
On 2-Axis hydraulic brakes backgauge retract on pinch point allows you to program the backgauge to retract once the workpiece is pinched in order to clear reverse bends.
