When working with your point cloud in SOLIDWORKS, the Scan to 3D add-in offers options to create meshes, delete points, select points to draw curves or create curves at the intersection of a plane and mesh. Most tasks can be performed relative to an end-users modeling style, workflow, and level of experience.
How do I use point clouds in SolidWorks?
Opening Scan Data
- Click Open and select one of the following types of scan data files in Files of type: Mesh Files (*. 3ds; *. obj; *. stl; *. wrl; *. ply; *.
- Browse to a file for File name.
- Click Options, set the import options, then click OK.
- Click Open. Mesh or Point Cloud. appears in the FeatureManager design tree.
Can SolidWorks import point cloud?

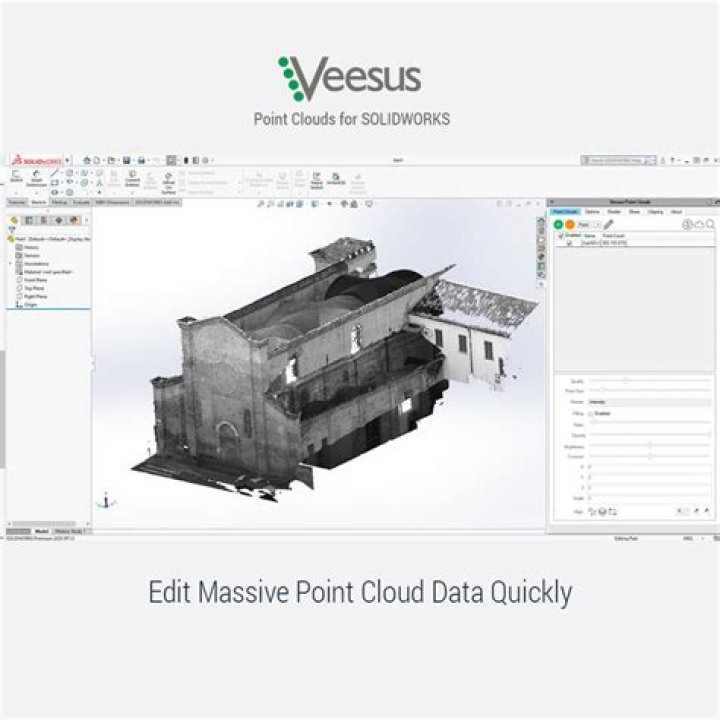

Massive point cloud data in SolidWorks The plug-in allows users to import and edit point clouds of any size in the native SolidWorks environment.
What can point clouds be used for?
A point cloud is a set of data points in space. As the output of 3D scanning processes, point clouds are used for many purposes, including to create 3D CAD models for manufactured parts, for metrology and quality inspection, and for a multitude of visualization, animation, rendering and mass customization applications.
How do I import points into SolidWorks?
follow the procedure below:
- the points should not be in a way that spline intersect itself and the text file for the point should contain coordinate of points as below:
- open a new part.
- then click on browse and change the type of file to text files (*.txt) as below:
- select the text file of coordinates of points.
How are point clouds captured?
Point clouds are usually generated using LiDAR (light detection and ranging) technology and techniques. These scans are combined and stitched together to create a complete picture of a scene, using a process called ‘registration’.
What is point cloud software?
Publisher’s Description. Point Cloud is a reverse engineering software which offers the ability to reconstruct the geometry of an object from a point cloud that describes it.
What is point cloud data?
A point cloud is a set of data points in space. Point clouds are generally produced by 3D scanners, which measure a large number of points on the external surfaces of objects around them.
What is a point cloud file?
A point cloud is a large collection of points acquired by 3D laser scanners or other technologies to create 3D representations of existing structures. Point cloud files support the design process by providing real-world context where you can recreate the referenced objects or insert additional models.
What is SolidWorks drawing?
SolidWorks eDrawings. As a best practice, distribute drawings and assemblies files in eDrawings format, which always requires updates when referenced parts are modified. If this is not possible, redistribute the updated SolidWorks parent drawings and assemblies each time you modify the referenced parts.
