Nanofiltration (NF) is a membrane liquid-separation technology sharing many characteristics with reverse osmosis (RO). Unlike RO, which has high rejection of virtually all dissolved solutes, NF provides high rejection of multivalent ions, such as calcium, and low rejection of monovalent ions, such as chloride.
What is membrane structure in case of nanofiltration?
Nanofiltration membrane is a pressure-driven membrane, with a nominal molecular weight cutoff (molecular weight of solute that is 90 % rejected by the membrane) ranging from 200 to 1000 Da, pore size of around 0.2–2.0 nm, and operating pressures of 70–200 psi (5–15 bar) (Schäfer et al. 2002).
What is the typical application of nanofiltration membrane?
Nanofiltration is a membrane filtration process used most often to soften and disinfect water….Range of applications.
| Industry | Uses |
|---|---|
| Fine chemistry and Pharmaceuticals | Non-thermal solvent recovery and management Room temperature solvent exchange |
Which is better nanofiltration or reverse osmosis?
Both RO and NF benefit from pretreatment Pretreating process streams to remove these problematic particulates can also reduce the amount of energy needed to maintain adequate pressure in a RO/NF system.
Can nanofiltration remove TDS?
The results show that this nanofiltration membrane is capable of retaining 96–98% of the total hardness, 79–89% of the electrical conductivity and 79–89% of the total dissolved solid (TDS). Our results are in good agreement with those reported by the manufacturing company.
What is the process of nanofiltration?
Nanofiltration is a pressure-driven membrane process that lies between ultrafiltration and reverse osmosis in terms of its ability to reject molecular or ionic species. Nanofiltration membranes, organic membranes, or ceramic membranes can be either dense or porous.
What are the advantages of reverse osmosis?
Advantages of Reverse Osmosis
- It is the best method for water softening.
- The semipermeable membrane will block all ion particles.
- Maintenance of the system is very simple.
- It gives us clean and pure water by blocking all contaminants.
- The available RO systems are very compact, and it requires little space.
How does reverse osmosis work?
Reverse Osmosis works by using a high pressure pump to increase the pressure on the salt side of the RO and force the water across the semi-permeable RO membrane, leaving almost all (around 95% to 99%) of dissolved salts behind in the reject stream.
Does UF filter reduce TDS?
A UF system retains beneficial minerals that an RO system removes. However, this means that an ultrafiltration system does not remove salts, fluoride, or TDS dissolved in water.
What is a spiral wound membrane?
Spiral-Wound Membrane. Description. Spiral-wound elements consist of membranes, feed spacers, permeate spacers, and a permeate tube. First, a membrane is laid out and folded in half with the membrane facing inward. The feed spacer is then put in between the folded membranes, forming a membrane sandwich.
What is microfiltration and nanofiltration?

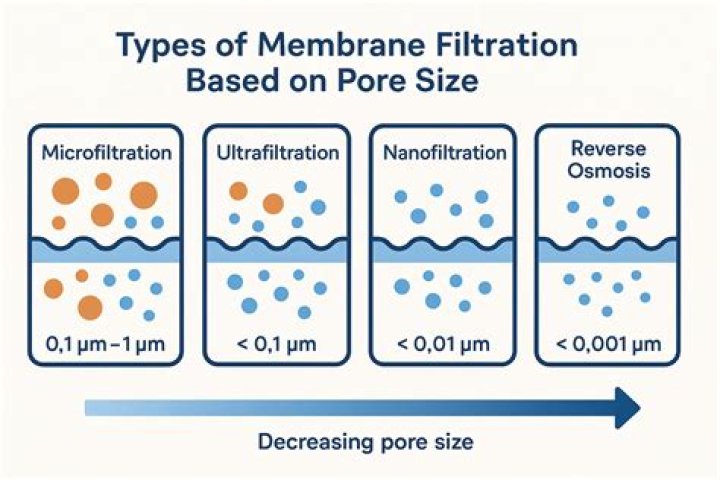

Microfiltration: Low-pressure membrane technology for separation of large solids. Ultrafiltration: Low-pressure membrane technology for separation, concentration, and purification of dissolved molecules. Nanofiltration: Medium-pressure membrane technology for separation, concentration, and demineralization of liquids.
What types of Nanofiltration membranes does Synder offer?
Currently, Synder offers nearly 30 various nanofiltration, ultrafiltration and microfiltration membranes for specialty process applications worldwide. Spiral-wound elements consist of membranes, feed spacers, permeate spacers, and a permeate tube.
What is the difference between a tubular and spiral-wound ultrafiltration system?
Tubular designs have more moderate membrane areas, but larger modules have been developed to accommodate greater feed volumes. We offer a range of ultrafiltration pore sizes that are used across various industries. Spiral-wound elements are used in applications that have relatively low suspended solids.
