A clayey soil generally has a low CBR value (less than 8). Sands are more granular and drain better and will generally have CBR values between 15 and 35. Gravel will have the best CBR values, generally 25 and up. That is why it is suggested to save the best material to cap the subgrade.
What should be the CBR value for crushed rock material?
The CBR is expressed as a percentage of the actual load causing the penetrations of 2.5 mm or 5.0 mm to the standard loads on crushed stone. A load penetration curve is drawn. The load values on standard crushed stones are 1,370 kgf (13.44 kN) and 2,055 kgf (20.15 kN) at 2.5 mm and 5.0 mm penetrations respectively.
How is CBR value calculated?
C.B.R. = (PT/PS) X 100 The C.B.R. values are usually calculated for penetration of 2.5 mm and 5 mm. Generally the C.B.R. value at 2.5 mm will be greater than at 5 mm and in such a case/the former shall be taken as C.B.R. for design purpose.
What is the CBR value of soil?
CBR is the ratio expressed in percentage of force per unit area required to penetrate a soil mass with a standard circular plunger of 50 mm diameter at the rate of 1.25 mm/min to that required for corresponding penetration in a standard material. The ratio is usually determined for penetration of 2.5 and 5 mm .
Is High CBR good?

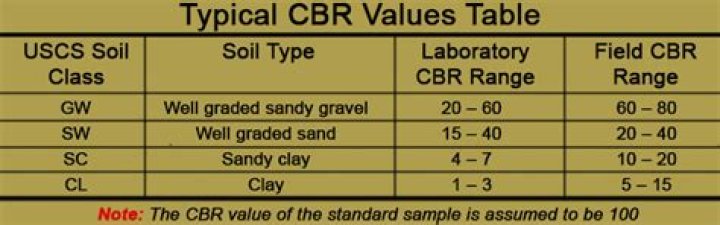

What are the typical CBR values? The harder the material, the higher the CBR value. A CBR value of 2% is usually found for clay, high-quality sub-base will have CBR values between 80% and 100%, and some sands may have values around 10%.
What is effective CBR of soil?
Composite strength of the subgrade and the embankment soil below it is termed as EFFECTIVE CBR. ▪ This composite strength should be taken for design consideration ▪ This composite strength should be taken for design consideration rather than strength of top 500mm.
How do you increase the CBR value of soil?
CBR value of clayey sand type of soil could be enhanced using materials like: lime, natural fibers, cement, fly ash, chemical compounds, etc.
Is CBR a 2720 test?
2.2 California Bearing Ratio (CBR) – The ratio expressed in percentage of force per unit area required to penetrate a soil mass with a circular plunger of 50 mm diameter at the rate of 1’25 mm/min to that required for. corresponding penetration in a standard material.
How do you read CBR results?
The harder the surface, the higher the CBR value. Typically, a value of 2% equates to clay, while some sands may have a CBR value of 10%. High quality sub-base will have a value of between 80-100% (maximum). The CBR test is carried out on soils with a maximum particle size of 20mm.
What is the minimum CBR value for base course?
25%
The material shall have a 4 day soaked CBR value not less than 25% when compacted to 98% of maximum dry density as determined by STP 4.5 (Vibrating Hammer).
What does CBR stand for in crushed stone?
California Bearing Ratio The California Bearing Ratio (CBR) test is a simple strength test that compares the bearing capacity of a material with that of a well-graded crushed stone (thus, a high quality crushed stone material should have a CBR @ 100%).
What is the CBR value of the material?
These loads are expressed as a percentage of standard load values at respective deformation levels to obtain CBR value. Standard pressure at 2.5 mm penetration = 70 Kg/cm 2 Normally the CBR value of 2.5 mm penetration which is higher than that at 5 mm penetration is repeated as CBR value of material
What is the CBR value for 5 mm penetration?
The C.B.R. value usually is selected at 2.5 mm penetration. If the C.B.R. at 5 mm is greater than at 2.5 mm, the test should be repeated. If the check test results are similar, then value for 5 mm penetration is used as. Generally, CBR test is conducted for three test specimen and the average value is taken of the three.
What is the CBR value of clay soil?
A CBR value of 2% is usually found for clay, high-quality sub-base will have CBR values between 80% and 100%, and some sands may have values around 10%. The CBR testing can be applied to soils with a maximum particle size of 20 mm.
