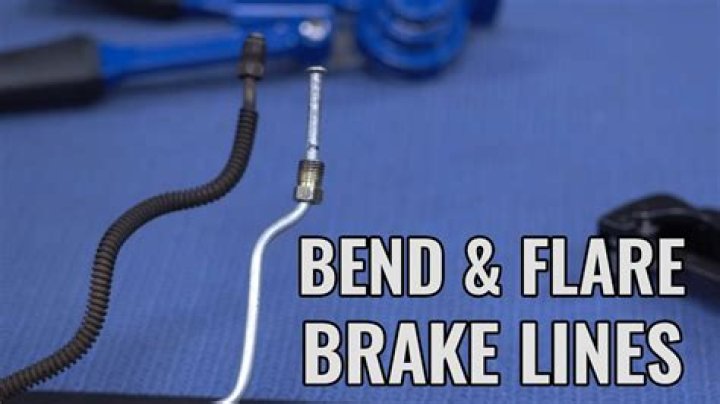

There are two basic types of flares used on OEM automotive brake systems throughout the world. The SAE/double (inverted/45degree) flare and the DIN/ISO bubble flare. We will refer to them as SAE or DIN flare. The most common is the SAE flare. You must use a nut with a “lead” for the DIN flare.
What is a standard flare?
The most common flare fitting standards in use today are the 45° SAE flare, the 37° JIC flare, and the 37° AN flare. SAE 45° flare connections are commonly used in automotive applications as well as for refrigeration and air conditioning. SAE fittings are typically made from brass.
Are brake lines flare 37 or 45?
rock scientist.. 37 is typical for a single flare. 45 is a double flare. You shoudl have double flared your fittings.
Can I use a single flare on brake lines?
1. Single Flares are only acceptable on low-pressure lines, but not acceptable for high-pressure brake systems. A single flare is just as it sounds, the line is flared out just once in a conical shape. Single flares are not acceptable for brake lines and tend to crack and leak quite easily.
What degree are brake line flares?
45-degree
The 45-degree inverted flare is the most common style of flare used in automotive hard lines like brake, fuel, and transmission fluid transfer.
What is 37 degree flare used for?
37° flare fittings perform well in severe applications where vibration, high pressure, and thermal shock exist. The flare fitting sleeve insures tube alignment with the fitting body axis and minimizes mechanical strain on the tube.
What are 37 degree flares used for?
Why do you double flare brake lines?
Double flares are necessary for brake lines due to the high pressures inflicted on them by the hydraulic system. Single flared lines are only appropriate for low-pressure lines due to their tendency to crack or leak.
