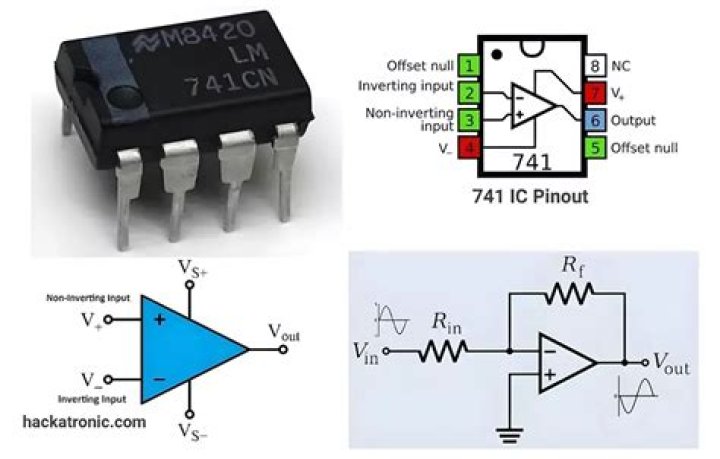

The 741 Op Amp IC is a monolithic integrated circuit, comprising of a general purpose Operational Amplifier. It was first manufactured by Fairchild semiconductors in the year 1963. The number 741 indicates that this operational amplifier IC has 7 functional pins, 4 pins capable of taking input and 1 output pin.
What is the function of operational amplifier?
An operational amplifier is an integrated circuit that can amplify weak electric signals. An operational amplifier has two input pins and one output pin. Its basic role is to amplify and output the voltage difference between the two input pins.
Which IC 741 serve as an amplifier?
op amp IC
Most commonly available and used op amp IC is IC 741. The IC 741 is a small chip. It comprises eight pins….Op amp 741 IC or Operational Amplifier 741 IC.
| Parameters | Typical Range | Ideal Value |
|---|---|---|
| Input Resistance(Ri) | 105 to 1013 | ∝ |
| Output Resistance(Ro) | 10 to 100 | 0 |
What is the difference between amplifier and operational amplifier?
Amplifiers can be either electronic or mechanical in common definition whereas operational amplifiers are electronic amplifiers. Amplifiers, in general, have a limited capability of amplifying DC signals but all op-amps are capable of amplifying DC signals.
What is the 741 op amp IC?
The 741 Op Amp IC is a monolithic integrated circuit, comprising of a general purpose Operational Amplifier. It was first manufactured by Fairchild semiconductors in the year 1963. The number 741 indicates that this operational amplifier IC has 7 functional pins, 4 pins capable of taking input and 1 output pin.
How does the 741 chip work?
The chip can be used in a circuit in two ways. If the voltage goes into pin two then it is known as an INVERTING AMPLIFIER. If the voltage goes into pin three then the circuit becomes a NON-INVERTING AMPLIFIER. The 741 integrated circuit looks like any other ‘chip’. However, it is a general purpose OP-AMP.
What does the number 741 mean on IC 741?
The number 741 indicates that this operational amplifier IC has 7 functional pins, 4 pins capable of taking input and 1 output pin. IC 741 Op Amp can provide high voltage gain and can be operated over a wide range of voltages, which makes it the best choice for use in integrators,…
What is offset null on a 741 op amp?
741 Op Amp Offset Null Offset null is a calibration feature of the op-amp. The op-amp is so sensitive to the input voltage that at times the output will generate a signal even when there is no intentional input. To avoid this condition for certain applications, offset null pins, pin 1 and pin 5 are provided.
