IC 4017 is a digital counter plus decoder circuit. The clock pulses generated at the output of the IC 555 timer (PIN-3) are given as an input to IC 4017 through PIN-14.
How do I reset my IC 4017?
If you want to glow only 5 leds in a sequence instead of 10,connect the pin 1 of the 4017 to its reset. Thus when 6th clock pulse arrives, reset button goes from high to low transition and resets the IC.
What is led chaser circuit?
This is the circuit of a simple LED chaser. The LEDs lights one by one for a period of 1second and the cycle repeats giving the running light appearance. The circuit uses two ICs (one is 555) to drive the LEDs. When one LED turns off, the second on turns on. This cycle repeats giving the running light appearance.
Why IC 555 is called Timer?
The 555 Timer IC got its name from the three 5KΩ resistors that are used in its voltage divider network. This IC is useful for generating accurate time delays and oscillations.
How many IC 7490 will be required to count 99 events?
As we studied earlier, we can increase the counting capability of a Decade number by connecting more ICs n series; we can count 99 with two 7490 ICs connected in series. This 7490 IC has inbuilt Divide by 2 and Divide by 5 counters in it.
The IC 4017 is a versatile counter divider IC which can be applied for making many different interesting electronic circuits. In this post we will learn about a few useful yet simple 4017 IC circuits and projects, assorted and compiled from this blog.
How many 4011 circuits are there in a circuit?
Browse through a total of 10 4011 Circuits. This humidity sensor consists of 2 copper conductors that are located at small distance from each other. The […] This is a very simple touch light switch circuit that uses the 4011 IC, one transistor and a […]

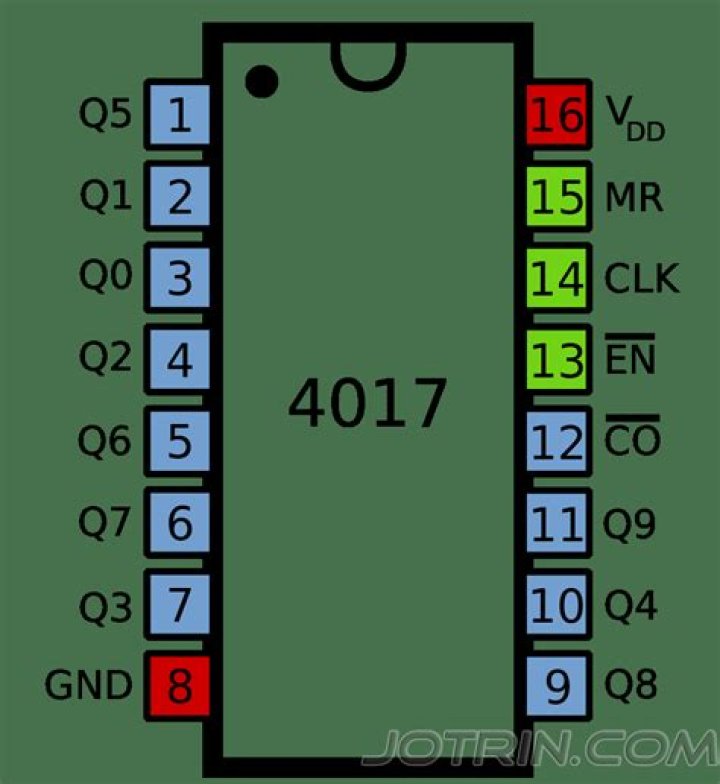

What is ic4017 IC?
4017 IC is a CMOS counter/divider integrated circuit, actually a decada counter with 10 decode ouputs. It is […] As the name indicates, the step switch selector circuit is intended to choose one of up to four […] Here is a simple LED chaser simulating a scanner through the back and forth light effect.
What is Johnson’s counter divide by 10 IC 4017?
The application is about LED chaser circuit which works specifically by suing this Johnson’s counter divide by 10 IC 4017. A number of different chser circuit are covered under this post, which includes, the famous knight rider chaser, LED scanner circuit, 16 LED cascaded chaser and many more.
