Three-phase power is a three-wire ac power circuit with each phase ac signal 120 electrical degrees apart. Residential homes are usually served by a single-phase power supply, while commercial and industrial facilities usually use a three-phase supply.
How does a 3 phase circuit work?
Three-phase power provides three alternating currents, with three separate electric services. Each leg of alternating current reaches a maximum voltage, only separated by 1/3 of the time in a full cycle. In a three-phase power supply, it requires four wires, namely one neutral wire and three-conductor wires.
What are 3 phase circuits used for?
A three-wire three-phase circuit is usually more economical than an equivalent two-wire single-phase circuit at the same line to ground voltage because it uses less conductor material to transmit a given amount of electrical power. Three-phase power is mainly used directly to power large motors and other heavy loads.
What is 3 phase power in a house?
Three-phase power has four wires, three of which are active, in addition to one neutral wire, which is earthed at the switchboard. Three phase electricity is common in both larger homes and businesses, as well as older homes, and allows for smaller and less expensive wiring, and lower voltages.
What is 240V 3 phase?
It supplies power at around 240 volts and is used in homes and businesses for most appliances and lighting. 3 phase power has four wires; three actives and one neutral, and supplies power at both 240V and 415V. When we bring 3 phase supply into a home it triples the amount of power available.
What is the symbol for 3 phase?
A three-phase system may be arranged in delta (∆) or star (Y) (also denoted as wye in some areas).
What is the benefit of 3 phase power?
A three-phase circuit provides greater power density than a one-phase circuit at the same amperage, keeping wiring size and costs lower. In addition, three-phase power makes it easier to balance loads, minimizing harmonic currents and the need for large neutral wires.
What is the voltage of three-phase?

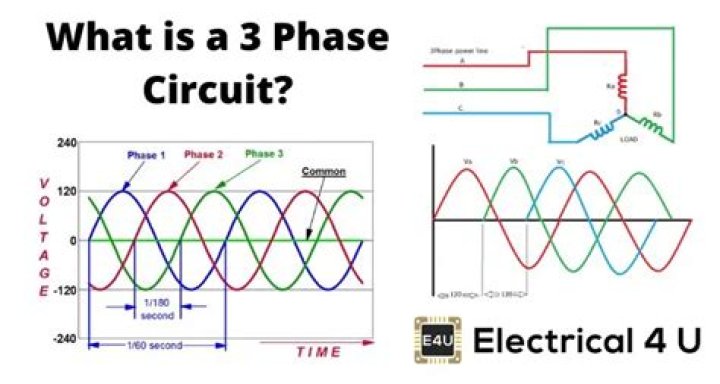

As shown in the figure below, the 3 phase supply has three wires (RYB). The voltage across any one phase and neutral is 220V, and the voltage across the 3 phase is 440V because we check the voltage between any two-phase RY or YB or BR.
What are the different 3 phase voltages?
A 3 Phase-Delta connected system consists of three hot lines, commonly referred to as X, Y, Z, and a ground wire for a total of four wires in a power distribution cable. In North America the most common 3 Phase-Δ voltages are either 208VAC or 240VAC, while internationally the most common 3 Phase voltage is 230 VAC.
How a 3 phase voltage is generated?
In a 3 phase system, there are three equal voltages or EMFs of the same frequency having a phase difference of 120 degrees. These voltages can be produced by a three-phase AC generator having three identical windings displaced apart from each other by 120 degrees electrical.
What is a three phase circuit?
A three-phase circuit is an electrical distribution method that uses three alternating currents to supply power.
What is three phase electrical wiring?
A three-phase electrical wiring diagram is a clear, visual representation of a common method of power generation and distribution. Three-phase electrical wiring is the most common means of distributing alternating-current power on power grids world-wide.
