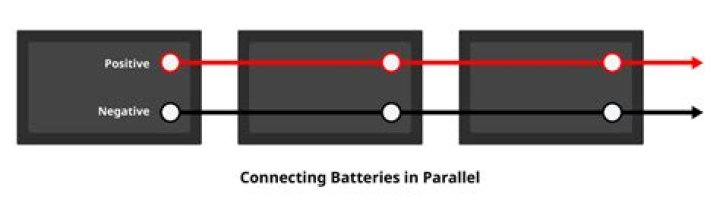

When two identical batteries are connected in parallel it will double the current capacity and the output voltage remains the same as a single battery. If you connect more identical batteries in parallel the output voltage will remain same but current capacity goes on adding.
How many batteries can you connect in parallel?
two batteries
Therefore, you can connect two parallel connections in a series as you would two batteries. Only one cable is needed; a bridge between a positive terminal from one parallel bank to a negative terminal from the other parallel bank. It’s alright if a terminal has more than one cable connected to it.
How many 12 volt batteries can I put in parallel?
Wiring batteries together in parallel has the effect of doubling capacity while keeping the voltage the same. For example; 2 x 12V 120Ah batteries wired in parallel will give you only 12V, but increases capacity to 240Ah.
Can you charge 12 volt batteries in parallel?
Two Batteries in Parallel, One Charger Batteries connected in series strings can also be recharged by a single charger having the same nominal charging voltage output as the nominal battery pack voltage. In Figure 9 we see a pair of 12-volt batteries connected in parallel.
Do batteries in parallel increase voltage?
Remember the voltage increases when batteries are in series, but with batteries in parallel this is not the case. When two or more batteries are placed in parallel, the voltage in the circuit is the same as each individual battery. When batteries are connected in series, the voltage increases.
How do you hook up two batteries in parallel?
Connect the other end to the positive terminal of the second battery. Take another wire and connect the negative post of the first battery to the negative post of the second battery. Connect your positive and negative wires to one battery and run your application. Always use heavy-duty wires when connecting batteries in parallel.
What is the difference between series and parallel batteries?
The critical difference is that series batteries add voltages together at a common current while parallel batteries add currents together at a common voltage. This is important because lead acid battery energy capacity is significantly influenced by the current drawn from them and not by their voltage.
How to charge multiple batteries?
Method One: Parallel Connection. For this method,you will require two or more identical batteries that will be connected in parallel.
What is parallel battery connection?
Parallel connections. We’ll start with parallel connections. A parallel connection between battery cells is a connection where all of the positive terminals of the cells are connected together, and all of the negative terminals are also connected together, but separately from the positive terminals.
