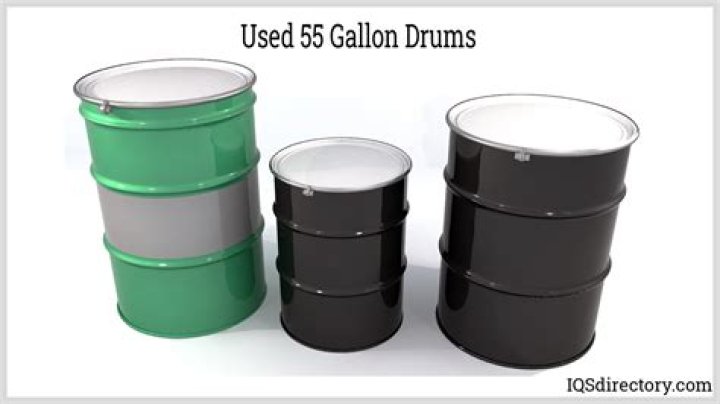

55 Gallon Steel Drums – Dimensions and Specifications The standard thickness of the steel is between 0.9 and 1.5 mm (20-16 gauge steel), and the drums are often reinforced with ribs or rolling hoops at both the top and bottom of the barrel as well as at each third of the barrel’s height.
What sizes are steel drums?
Great Western Containers new steel drums (barrels) are manufactured from top quality cold rolled steel and are available in gauges ranging from 16 (1.4 mm) to 22 (. 7 mm). We manufacture various sizes from 8 imperial gallons to a 46 imperial gallons and are capable of producing UN as well as non-UN rated drums.
How can you tell if a metal barrel is food grade?
The RIC, or Resin Identification Code, is an important marking found at the bottom of a food grade plastic barrel inside a small triangle. This number identifies the type of resin used in the manufacture of the plastic. Foodstuffs are shipped most often in barrels with RIC codes of #2, #4 and #5.
How much does a 30 gallon steel drum weight?
26 lb.
The drum has a storage capacity of 30 gallons, weighs 26 lb., and measures approximately 27-1/4″ high and 18-1/4″ in diameter.
What gauge metal is a steel drum?
Most drums display the thickness of the drums in parts, top/body/bottom (1.2/0.9/1.5). That would mean that the top is 1.2 mm thick (18 gauge), the body is 0.9 mm thick (20 gauge), and the bottom is 1.5 mm thick (16 gauge). Most drums fall in the range of 0.9 – 1.5 mm thick.
What is the difference between a drum and a barrel?
Many drums nominally measure just under 880 millimetres (35 in) tall with a diameter just under 610 millimetres (24 in), and have a common nominal volume of 208 litres (55 US gal) whereas the barrel volume of crude oil is 42 US gallons (159 L).
Are steel drums airtight?
Two types of steel drums are available for shipping purposes: open-head and tight-head. Tight-head drums are manufactured without a removable lid and use a bung system to dispense their contents. Tight-head drums are more appropriate for non-viscous liquids that are easy to dispense through an attached faucet system.
How much do empty oil drums weigh?
Metal empty 55-gallon drums weigh approximately 40 pounds, whereas plastic 55-gallon drums weigh half as much. There is no uniform weight to a 55-gallon drum; weight depends on the dimensions and materials of the drum. A 55-gallon plastic drum weighs approximately 20 pounds.
How many pounds will a 30 gallon drum hold?
If A 30 gallon drum will support approx. 250 lbs, then it will be doing so nearly completely submerged.
What is the best gauge of steel for a drum?
The thickness (1.2 mm) or gauge (18 gauge) of the steel is important depending on the reason you’re using a drum. Generally the heavier and thicker the gauge of steel used to manufacture the container, the sturdier the container will be in service.
What are the different types of stainless steel drums?
Open Head Stainless Steel Drums. Tight Head Drums – Tight head drums, also known as closed head or 1A1 drums, have a secured, non-removable top and are typically used with lower viscosity liquids. Access to a tight head drum typically is via a 2″ and 3/4″ bung opening in the top of the container. Tight Head Carbon Steel Drums.
How many hoops are on a 55 gallon steel drum?
Most 55 gallon steel drums are built with three rolling hoops (the first hoop is placed 3 inches from the top curl while the other 2 hoops are centered on the drum) and a few are built with only two hoops. There are also 55 gallon drums constructed without any rolling hoops, called straight-sided drums, which are not UN rated due to strength.
What are the different types of products packaged in drums?
Typical products packaged are alkaline products, fatty acids, detergents, emulsions, foods, general organic chemicals, surfactants, and water based resins. Drum liners are typically constructed from FDA approved polyethylene, and are designed to fit in either steel or plastic drums of various sizes.
