Description. The rear edge of an aerofoil where the airflow separated by the Leading Edge rejoins and where the essential control surfaces are located.
What is leading and trailing edges?
Leading edge dimming cuts of the front edge of each waves’ half cycle. Conversely trailing edge dimming cuts out the second half of each waves’ half cycle. Trailing edge dimmers are now the more popular of the two types.
What are trailing edge devices?
Although the detail design and relative effectiveness of the different devices vary, the basic means by which they increase the maximum lift coefficient remain the same. Trailing-edge devices are designed to increase the effective angle through which the flow is turned and thus increase the lifting capability.
What are trailing edge flaps?
English: Trailing-edge flaps or simply flaps are wing devices used to increase the maximum lift coefficient that a wing can generate.
Why do you need to bend the trailing edge of the wings?
It’s called a winglet (usually) and it helps improve aircraft flight performance, by blocking wingtip vortices which would otherwise disrupt the airflow around the wing and cause decreased lift/ increased drag.
What is the top of a wing called?
trailing edge

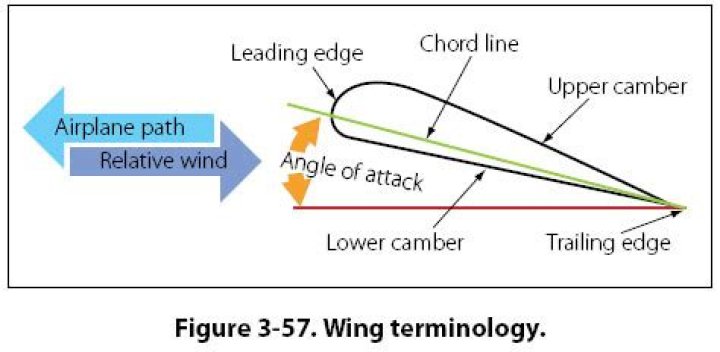

The front of the wing (at the bottom) is called the leading edge; the back of the wing (at the top) is called the trailing edge. The distance from the leading to trailing edges is called the chord, denoted by the symbol c.
What is the curve of a wing called?
The maximum distance between the two lines is called the camber, which is a measure of the curvature of the airfoil (high camber means high curvature). The maximum distance between the upper and lower surfaces is called the thickness.
What are the main types of leading edge devices?
Common types. The most common types of leading edge high lift devices are fixed slots, movable slats, leading edge flaps and cuffs.
When the trailing edge flaps are lowered the aircraft will?
Pivoting the leading edge of the slat and the trailing edge of the flap downward increases the effective camber of the airfoil, which increases the lift. In addition, the large aft-projected area of the flap increases the drag of the aircraft. This helps the airplane slow down for landing.
What is a trailing edge on a propeller?
Trailing edge. The portion of the airfoil where the airflow over the upper surface rejoins the lower surface airflow. Trailing edge. The thin edge at the rear of a propeller blade. Trammel (verb). To square up the Pratt truss used in an airplane wing. [>>>]
What is tratrailing edge?
Trailing edge. “ the remarkable controlling influence exerted by the sharp trailing edge of an aerofoil on the circulation .” Other sharp-edged surfaces that are attached to the trailing edges of wings or control surfaces include:
What is a trailing edge on an airfoil?
Trailing edge. The chord line is a straight line connecting the leading and ~[⇑] s of the airfoil. The chord is the length of the chord line from leading edge to ~[⇑] and is the characteristic longitudinal dimension of the airfoil. The mean camber line is a line drawn halfway between the upper and lower surfaces.
What is the trailing edge of an aerodynamic surface?
The trailing edge of an aerodynamic surface such as a wing is its rear edge, where the airflow separated by the leading edge rejoins.
