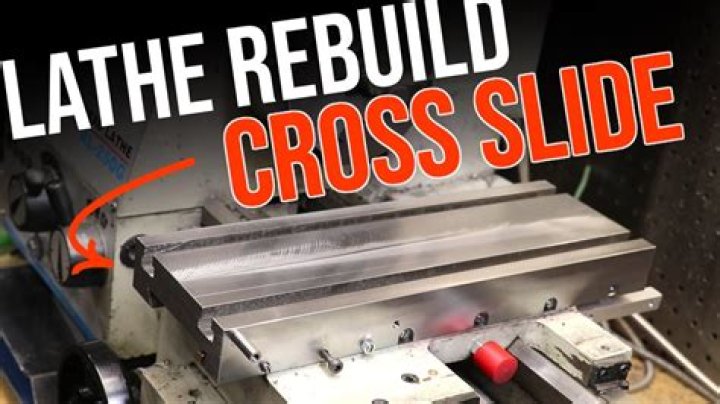

The cross slide is a component found on the top of a lathe that allows the tool bit to slide back and forth.
How do you adjust a cross slide on a lathe?
Adjusting Cross-slide Backlash
- Loosen the two outer screws using a 3mm hex wrench.
- Loosen the middle screw using a 2.5mm hex wrench.
- Tighten the middle screw until it is just snug.
- Tighten the two outer screws until just snug.
What is the top slide on a lathe used for?
The compound rest (or top slide) (2) is usually where the tool post is mounted. It provides a smaller amount of movement (less than the cross-slide) along its axis via another feedscrew. The compound rest axis can be adjusted independently of the carriage or cross-slide.
What is use of lead screw in lathe?
A leadscrew (or lead screw), also known as a power screw or translation screw, is a screw used as a linkage in a machine, to translate turning motion into linear motion.
Is a long threaded shaft on the lathe?
Lead screw: It is a long threaded shaft used as master screw. It is brought into operation during thread cutting to move the carriage to a calculated distance.
How do you overcome backlash in machine slides and screws?
How to prevent backlash in lead screws
- Use two nuts. Arguably the simplest way to mitigate the effects of backlash is to use two nuts, spaced apart to press against opposing flanks of the lead screw thread.
- Use an anti-backlash nut.
- Use backlash compensation software.
- Ignore it.
How do you make a lathe more accurate?
The bed of the lathe needs to be very flat, as the rest of the machine can be calibrated with it. One way it can be made that way is by putting the not-straight bed up against a much flatter surface plate, and scraping off the high spots on the lathe bed until they meet perfectly.
What is lead screw in lathe machine?
A leadscrew (or lead screw), also known as a power screw or translation screw, is a screw used as a linkage in a machine, to translate turning motion into linear motion. Leadscrews are commonly used in linear actuators, machine slides (such as in machine tools), vises, presses, and jacks.
Is a long threaded shaft of lathe & used as a master screw?
Can I use a ball screw to tighten up a lathe?
The ball screw will not hold the cross slide in place as an acme threaded screw would. If you are not planning on something silly like mounting servo motors on it, I wouldn’t bother. You would be suprized to find out how a little tlc can tighten up a loose lathe.
Is there a backlash on the cross slide?
There is .030 backlash on the cross slide. I was thinking about using a rolled Thompson 3/4″ ballscrew replacement for this.
Does a ballscrew have a grip hold?
Whoops, I completely forgot about the fact that a ballscrew has a super-fast slide with no grip hold; which defeats the purpose of a manual cross slide. When the assembly was off, I took a close look at the screw and nut. The brass nut is loose on the leadscrew plenty.
What is a lathe conversion travel kit?
The increased travel is away from the centerline of the lathe so you can work on larger diameter work pieces. This lathe conversion travel kit replaces the saddle and the cross slide feed screw, and it includes a spacer for the longer screw. This kit comes with complete instructions for installation. This product works with the following lathes.
