Provisioned space is something that comes into play when you thin provision your virtual machines. Basically you start out using no space, and then as a virtual machine starts to use space, VMware will start to grow that virtual machine on the datastore as needed.
What is provisioned space?
Provisioned Space is the total size allocated to the VMs. Free Space is the space not used up by VMs yet. Therefore, with thin provisioning, you can over provision the amount of space to VMs based upon the Free Space at that time. A VM can be allocated 100GB but be only using 50GB.
What is thinly provisioned storage?
Thin provisioning allocates disk space to users on demand based on how much space they need at any given time. As a user saves more data, they take up more of the disk; when they delete data, their portion shrinks. Divisions on physical storage are virtual and flexible rather than determined in advance.

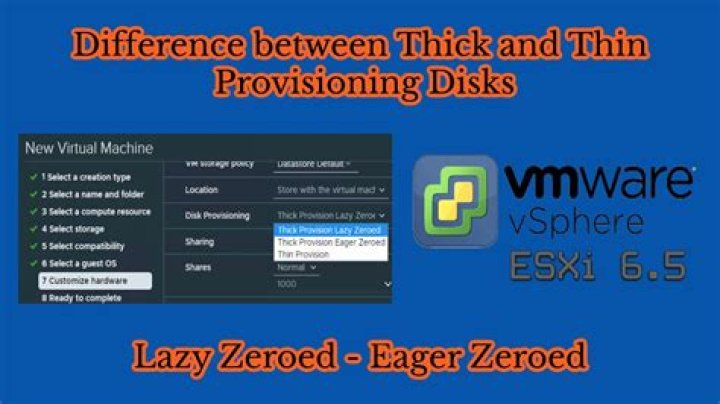

What is thick provisioned storage?
In virtual storage, thick provisioning is a type of storage allocation in which the amount of storage capacity on a disk is pre-allocated on physical storage at the time the disk is created. Thin provisioning helps to avoid wasted physical capacity and can save businesses on up-front storage costs.
Can you expand a thin-provisioned disk?
When the disk space is exhausted and a thin-provisioned disk cannot expand, the virtual machine cannot boot. The thin provisioned disk starts small and at first, uses just as much storage space as it needs for its initial operations.
What is the difference between provisioned storage and used storage?
Provisioned Storage shows the space which is allocated to the vm. In case of Thin disk entire space is not used by the VM but in case of Thick Disk entire provisioned space is allocated to that vm. So if you have used the Thin disk then VM will use the space whichever is required only instead of the full allocated.
How does VMware HA work?
How does VMware HA work? VMware HA continuously monitors all ESX Server hosts in a cluster and detects failures. An agent placed on each host maintains a “heartbeat” with the other hosts in the cluster and loss of a heartbeat initiates the process of restarting all affected virtual machines on other hosts.
Can you increase the size of a thick provisioned disk?
You right click on the VM, edit settings, and increase the size of the drive. In Windows, you open disk management and expand the volume. It doesn’t matter if the disk was thin provisioned or thick provisioned, the process for expanding it is the same.
How do you convert a thin provisioned disk to thick?
To change vmdk from Thin to Thick provisioning
- Power off the virtual machine.
- In vSphere Client, right-click the virtual machine in the inventory.
- Click Edit Settings to display the Virtual Machine Properties dialog box.
- Select the appropriate hard disk in the Hardware list.
Can I expand thick provisioned disk VMware?
How do I increase hard disk space in vSphere web client?
ESX, VI Client and vSphere
- Open the VMware Infrastructure (VI) client and connect with vCenter or the ESX host machine.
- Right-click on the virtual machine.
- Click on Edit settings.
- Select Virtual Disk.
- Enter the desired size for the virtual hard disk.
Is overprovisioning VMS safe?
Overprovisioning VMs may be safe, but it isn’t sound A strategy of allocating more resources than a VM needs may prevent performance troubles, but can mean unnecessary hardware additions.
What is Overprovisioning and how does it work?
With overprovisioning turned on, the scale set actually spins up more VMs than you asked for, then deletes the extra VMs once the requested number of VMs are successfully provisioned. Overprovisioning improves provisioning success rates and reduces deployment time.
Can I overprovision or reimage scale set VMS?
You can reimage scale set VMs but not individual VMs. You can overprovision scale set VMs for increased reliability and quicker deployment times. You cannot overprovision individual VMs unless you write custom code to perform this action. You can specify an upgrade policy to make it easy to roll out upgrades across VMs in your scale set.
What happens if you allocate too many resources to a VM?
A strategy of allocating more resources than a VM needs may prevent performance troubles, but can mean unnecessary hardware additions. Appropriately sizing virtual machines can be a difficult process with many unknowns. Allocating too few resources can starve a VM and lead to poor performance.
