BGP4 graceful restart (GR) allows for restarts where BGP neighboring devices participate in the restart, helping to ensure that no route and topology changes occur in the network for the duration of the restart.
How do I enable BGP graceful restart?
Long-lived graceful restart receiver mode is enabled by default, unless ordinary graceful restart receiver mode is disabled. To enable the BGP long-lived graceful restart (LLGR) capability, include the long-lived receiver enable statement at the [edit protocols bgp graceful-restart] hierarchy level.
What is graceful shutdown in BGP?
The BGP Graceful Shutdown feature reduces or eliminates the loss of inbound or outbound traffic flows that were initially forwarded along the peering link that is being shut down for maintenance. This feature is primarily for PE-CE, PE-RR and PE-PE links.
How do you do a graceful reboot test?
To verify proper operation of graceful restart, use the following commands:
- show bgp neighbor (for BGP graceful restart)
- show log (for IS-IS and OSPF/OSPFv3 graceful restart)
- show (ospf | ospfv3) overview (for OSPF/OSPFv3 graceful restart)
- show rsvp neighbor detail (for RSVP graceful restart—helper router)
What is graceful restart?
Graceful restart allows a routing device undergoing a restart to inform its adjacent neighbors and peers of its condition. During a graceful restart, the restarting device and its neighbors continue forwarding packets without disrupting network performance.
What is BGP graceful restart NSR and NSF?
Graceful Restart (GR) (also known as Non Stop Forwarding (NSF)) and Non Stop Routing (NSR) are two different mechanisms to prevent routing protocol re-convergence during a processor switchover.
How does OSPF graceful restart work?
Graceful Restart for OSPF Overview. Graceful restart allows a routing device undergoing a restart to inform its adjacent neighbors and peers of its condition. During a graceful restart, the restarting device and its neighbors continue forwarding packets without disrupting network performance.
How do I restart BGP?
The most straightforward way to reset a BGP session is with the clear ip bgp command. clear ip bgp is the original version of the command. There’s also clear bgp ipv6 unicast for IPv6 BGP sessions and the corresponding clear bgp ipv4 unicast for IPv4 BGP sessions.
What is graceful restart in Juniper?
Graceful Restart in OSPF. Grace (type 9) LSAs negotiate and exchange restart information between OSPF neighbors.
What is NSR BGP?
BGP nonstop routing (NSR) ensures continuous routing by synchronizing BGP state and data information from the active BGP process to the standby BGP process. The standby BGP process can seamlessly take over all services when the active process fails in one of the following situations: The active BGP process restarts.
How do I reset my BGP peer?
Whenever the routing policy changes due to a configuration change, BGP peering sessions must be reset by using the clear ip bgp command.
What is the purpose of BGP graceful restart?
For this reason, the protocol was designed to remove state advertised by routers which went down (from a BGP perspective) as promptly as possible. Using BGP Graceful Restart defined in RFC 4724, the fast convergence functionality has been an attempt to rapidly remove “stale” state from the network.

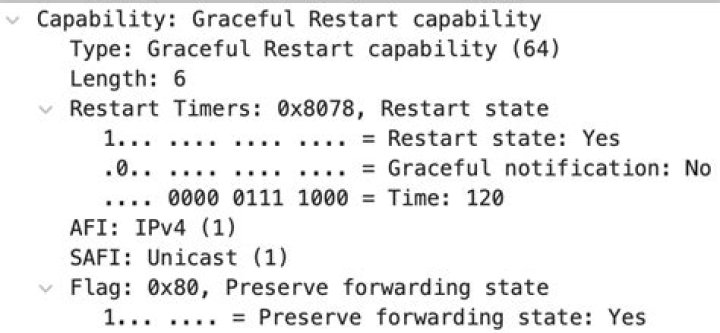

What is the graceful restart capability?
The Graceful Restart Capability is a new BGP capability [ BGP-CAP ] that can be used by a BGP speaker to indicate its ability to preserve its forwarding state during BGP restart. It can also be used to convey to its peer its intention of generating the End-of-RIB marker upon the completion of its initial routing updates.
What is RFC 4724 graceful restart mechanism?
RFC 4724 Graceful Restart Mechanism for BGP January 2007 4. Operation A BGP speaker MAY advertise the Graceful Restart Capability for an address family to its peer if it has the ability to preserve its forwarding state for the address family when BGP restarts.
What is junjunos OS BGP graceful restart?
Junos OS supports the mechanism to preserve BGP routing details for a longer period from a failed BGP peer than the duration for which such routing information is maintained using the BGP graceful restart functionality.
