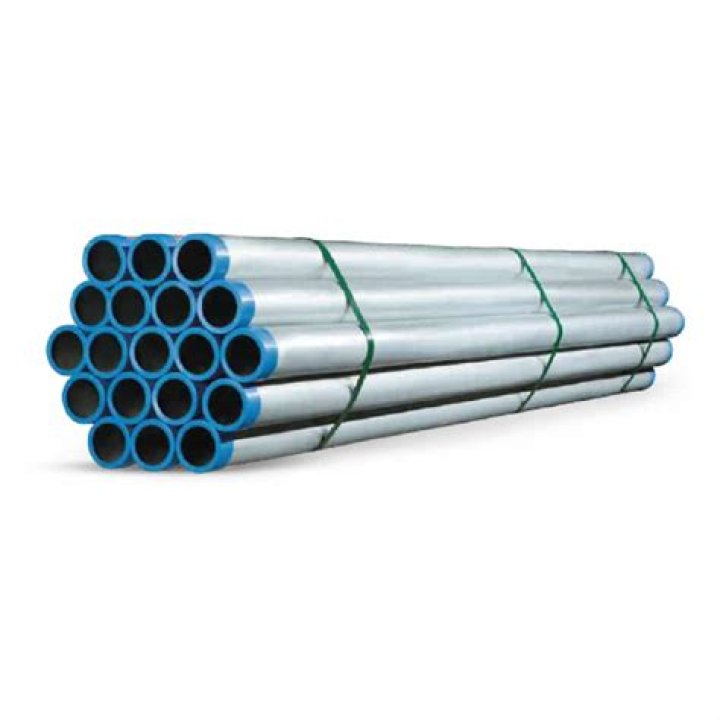

| RIGID STEEL CONDUIT (HEAVY WALL CONDUIT) | ||
|---|---|---|
| Nominal Conduit Size | Minimum Weight | |
| 3″ | 80 | 3.090 |
| 31/2″ | 90 | 3.570 |
| 4″ | 100 | 4.050 |
What does one conduit weigh?
Galvanized Rigid Conduit (GRC)
| Trade Size | Metric Designator | Approx Weight per 100 Ft (30.5M) |
|---|---|---|
| 1 | 27 | 73.0 |
| 1 1/4 | 35 | 98.9 |
| 1 1/2 | 41 | 119.3 |
| 2 | 53 | 158.8 |
How do I support an EMT conduit?
Horizontal runs of EMT are considered supported if installed through openings in framing members that are spaced not more than 10 ft. apart. Shall be secured within 12 inches of a box, cabinet, or fitting and supported every 6 feet thereafter.
Where is EMT conduit not allowed?
EMT shall not be used under the following conditions: Where subject to severe physical damage. For the support of luminaires or other equipment except conduit bodies no larger than the largest trade size of the tubing.
What is the OD of 1/2 inch rigid conduit?
Electrical Metallic Tubing (EMT) – Thinwall Conduit
| Conduit Trade Size | Outside Diameter | |
|---|---|---|
| (in) | (mm) | (in) |
| 1/2 | 16 | 0.706 |
| 3/4 | 21 | 0.922 |
| 1 | 27 | 1.163 |
Is EMT rigid conduit?
Electrical Metallic Tubing—EMT EMT is also called “thin-wall” conduit because it is thin and lightweight, especially compared to RMC. EMT is rigid but can be bent with a simple tool called a conduit bender.
How far can conduit span without support?
Supports for Rigid Metallic Conduit
| Conduit Size | Distance Between Supports |
|---|---|
| 1″ | 12 Feet |
| 1¼” – 1½” | 14 Feet |
| 2″ – 2½” | 16 Feet |
| 3″ and larger | 20 Feet |
Do you need to use primer on PVC conduit?
PVC Conduit Doesn’t Need Primer Some PVC pipes require primer, but you don’t need to use primer when gluing conduit and fittings. Home centers usually sell the appropriate glue/cement near the the PVC conduit and fittings.
Can I use EMT pipe outside?
Electrical Metallic Tubing (EMT) is lightweight steel tubing that is easy to install and can be bent or cut with the appropriate tools. This rigid metal conduit is approved for all interior applications but can also be used outside.
Can you put EMT in concrete?
Electrical metallic tubing (EMT), elbows, couplings, and fittings can be installed in concrete, in direct contact with the earth, or in areas subject to severe corrosive influences where protected by corrosion protection and judged suitable for the condition [358.10(B)].
How much does EMT conduit weight?
Electrical Metallic Tubing (EMT) and True Color EMT
| Trade Size | Metric | Approx Weight/100 Ft (30.5M) |
|---|---|---|
| 1/2 | 16 | 13.60 |
| 3/4 | 21 | 20.90 |
| 1 | 27 | 30.40 |
| 1 1/4 | 35 | 45.80 |
What is the difference between EMT conduit and rigid conduit?
Rigid Conduit. While EMT conduits are less rigid than other types, it is important to understand the differences between them. Some EMT conduits are made from aluminum, which is rigid and more similar to GRC. Aluminum has a higher resistance to corrosion than other metals and materials.
What does EMT stand for in Conduit?
EMT conduit stands for electrical metallic tubing. As it’s name implies, it is a type of conduit that is made out of metal, typically coated steel or aluminum.
What is the diameter size of EMT conduit?
EMT Conduit of trade size 3/4-Inch, has outside diameter of 0.922-Inch and wall thickness of 0.049-Inch.
What size is conduit?
The Electrical Conduit Gauge (CG1) accurately measures the “bore” or inside diameter of steel and aluminum conduit ranging in size from 0.5 inches to 4 inches (13 millimeters to 102 millimeters).
