Piezometer (Fig. 1.24) is used to measure underground water pressure. It converts water pressure to a frequency signal via a diaphragm and a tensioned steel wire.
How do you use a piezometer?
Deflections of the diaphragm are detected using a vibrating wire or a strain gauge and are converted to an equivalent pressure using a suitable calibration. The piezometer is inserted into a borehole and the annulus between the porous filter and the borehole is filled with either sand or cement/bentonite grout.

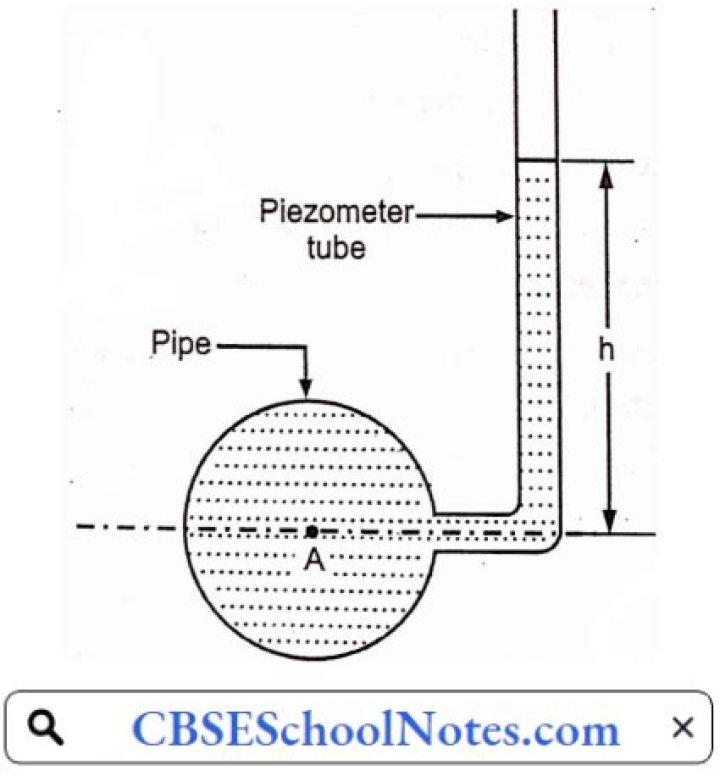

What is piezometer tube in fluid mechanics?
It consists of glass tube connected to a vessel or pipe at which static pressure is to be measured. It is the simplest of all the manometers (Fig. 5.1). It is used to measure very low pressures.
What do a piezometer and a pitot tube measure?
A combination of piezometer and pitot tube can be used to obtain the velocity at a specific point. Static pressure can be measured using a piezometer. The Pitot tube, as shown in the figure, can be used to measure the stagnation pressure.
How does a vibrating wire work?
A vibrating-wire sensor operates on the principle that a tensioned wire, when plucked, will vibrate at its resonant frequency. Physical changes to the sensor cause a change in the tension of the wire. An electromagnetic “plucking and pickup” coil strums the wire across a specified frequency spectrum.
Where is piezometer installed?
The piezometer is to be installed/constructed at the minimum of 50 m distance from the pumping well through which groundwater is being withdrawn. The diameter of the piezometer should be about 4” to 6”. The depth of the piezometer should be same as in case of the pumping well from which groundwater is being abstracted.
What is a standpipe piezometer?
The Standpipe Piezometer is designed to be placed within a drilled hole to provide a filtered inlet point. Pointed PVC tip is suitable for pushing into very loose sands at the base of a borehole, a stream, or into very loose tailings pond sediments.
Are piezometers accurate?
A vibrating wire piezometer is the only device that can measure negative pore pressures because it indicates absolute pressures. Encardio-Rite’s vibrating wire piezometers are fitted with high air entry porous filters that remove the air inside the piezometer so that the readings are accurate.
Why is piezometer better than manometer?
A manometer is an instrument which is used for measuring the gas pressure whereas the piezometer is a device which is used to measure the liquid pressure. A manometer measures the gas pressure in the transparent U-tube whereas the piezometer measures the groundwater level in the wells.
What is the difference between piezometer and pitot tube?
A piezometer is designed to measure static pressures, and thus differs from a pitot tube by not being pointed into the fluid flow. Observation wells give some information on the water level in a formation, but must be read manually.
How does vibrating wire piezometer work?
Working principle The VW Piezometer operates on the principle that a tensioned wire, when plucked, vibrates at its resonant frequency. Around the wire is a magnetic coil which when pulsed by a vibrating readout or data logger interface plucks the wire and measures the resultant resonant frequency of vibration.
How does a piezometer work?
Piezometer is a glass tube, one end of it is connected to the point where the pressure to be measured and other end is open in atmosphere. The height of liquid column is read manually, in some cases, electrical transducers are used to read it automatically and making the data recording more convenient.
How does a piezometer measure groundwater pressure?
Unsourced material may be challenged and removed. A piezometer is either a device used to measure liquid pressure in a system by measuring the height to which a column of the liquid rises against gravity, or a device which measures the pressure (more precisely, the piezometric head) of groundwater at a specific point.
What is epp-10sp standpipe piezometer used for?
The Model EPP-10 SP standpipe is used for measuring groundwater level and its variation with time. The Encardio-rite model EPP-10SP standpipe piezometer consists of a pipe that is sealed along its entire length and installed in a borehole such that it must be open to water flow at the bottom and open to the atmosphere at the top.
What is piezometric height of liquid column?
Measured liquid column height is known as piezometric height. Piezometer is a glass tube, one end of it is connected to the point where the pressure to be measured and other end is open in atmosphere.
