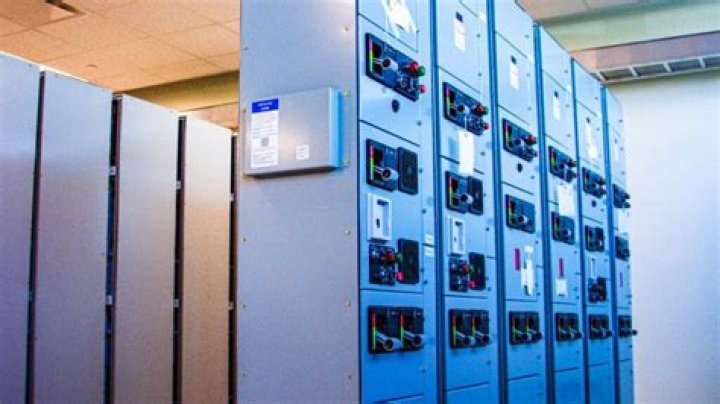

A motor control center (MCC) is an assembly to control some or all electric motors in a central location. It consists of multiple enclosed sections having a common power bus and with each section containing a combination starter, which in turn consists of motor starter, fuses or circuit breaker, and power disconnect.
What is a motor control center bucket?
Electrical buckets are more commonly known as motor control center (MCC) buckets. Essentially, they are metal enclosures that house the control portion of a motor control center. They connect the electrical components easily and quickly to bus bars in a control center enclosure with their bus connections.
Is standard for MCC panel?
The MCC panels are conventional to the international standards and are available with multiple power stabs that help in supporting high capacity industrial motors….Technical Specification.
| Rated Insulator Voltage : | 660 Volt |
|---|---|
| Fault level : | 50KA for 1 Sec, 42KA for 1 sec, 35KA for 1 sec |
| Ambient Temp : | 50°C |
What is a low voltage MCC?
A low voltage motor control center (LV-MCC) is an assembly of one or more enclosed sections having a common power bus and principally containing motor control units. LV-MCCs provide the most suitable method for grouping electrical motor control, automation, and power distribution in a compact and economical package.
What are the two basic types of motor controls?
There are four basic motor controller and drive types: AC, DC, servo, and stepper, each having an input power type modified to the desired output function to match with an application.
Are conventional MCC unit is?
A conventional MCC is an assembly of several motor starters having a common power bus and motor control units.
What is a smart MCC?
Siemens smart MCCs are networked, NEMA compliant motor control centers that can communicate. They incorporate intelligent devices at the unit level to control and monitor motor operation, energy consumption, and power quality. Smart MCCs rapidly communicate with PLCs or process control systems via a data network.
What is ship automation & control system?
Ship Automation & Control System. On a ship there are many parameters that needs to be controlled or monitored including: temperatures, pressure, level, viscosity, flow control, position of vessel, speed, torque control, voltage, current, machinery status (on/ off), and equipment status (open/ closed).
What are the functions of the cargo control system on tankers?
For safe on and off loading of cargo, especially on tankers, this process is closely monitored and many times incorporates functions like: Level gauging, Control of cargo pumps, Valve control, Ballast & ballast pump control, Heeling control, Remote monitoring of temperature, pressure, and flow.
What is a cargo plan on a ship?
Control of the cargo and producing a cargo plan is also the duty of the Deck Officers, usually the mate or Second Officer. It is a very important document required to keep a record of the type, description, and weights of the various pieces of cargo stored in the holds or on deck.
What is the purpose of a cargo manifest?
It is a very important document required to keep a record of the type, description, and weights of the various pieces of cargo stored in the holds or on deck. It also notes its location as well as the sequence of loading, and thus the reverse order of discharge, in the various ports of call.
