Table 14.1. Copper Tube: Types, Standards, Applications, Tempers, Lengths
| Tube type | Color code | Commercially available lengths 2 |
|---|---|---|
| Drawn | ||
| Type K | Green | – |
| – | ||
| Type L | Blue | Straight lengths: |
How do I know what type of copper I have?
The inside diameter (ID) of copper pipe is determined by the wall thickness of the pipe, which varies by the pipe type. The internal or external fluid pressure may determine the type of copper piping specified for any application, the installation, the service conditions, and the local building code requirements.
What is the designated Colour code for DMV type copper tubing?

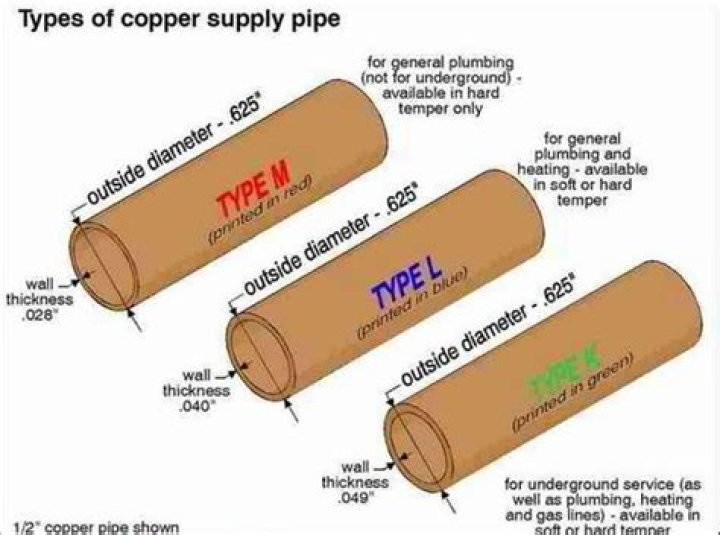

Copper Pipe Types The letter codes also relate to the color of the printing placed on the side of the pipe, which helps to identify it. Type K is green, type L is blue, type M is red and DWV is yellow.
What is the difference between Type L and Type K copper pipe?
Each type represents a series of sizes with different wall thicknesses. Type K tube has thicker walls than Type L tube, and Type L walls are thicker than Type M, for any given diameter. All inside diameters depend on tube size and wall thickness.
Should I use Type M or Type L copper?
Type L copper pipe is recommended where you need strength and protection. But for normal “in the wall” household plumbing, Type M copper pipe is just fine.
Is Type L copper bendable?
First, traditional type L copper tubing can not be bent. If it is, it can break down and create micro-fractures, leading to leaks and catastrophic system vulnerabilities. Therefore, U.S. piping systems require an excess of joints and fittings, which leads us to the second reason.
What are the different grades of copper?
Different Grades of Copper
- Pure Coppers. Commercially pure coppers contain 0.7% in total impurities in its composition.
- Oxygen Free Coppers. Oxygen free coppers are the purest coppers available.
- Electrolytic Coppers.
- Free-Machining Coppers.
What is the difference between red and blue copper?
M/Red is lighter duty, generally used for hydronic heating. It is permitted by code for domestic in SOME areas. L/Blue is a medium grade, suitable for domestic or hydronic heating.
What is the hardest type of copper?
Copper beryllium is the hardest and strongest of any copper alloy, in the fully heat treated and cold worked condition. It is similar in mechanical properties to many high strength alloy steels but, compared to steels, it has better corrosion resistance.
Can you bury Type L copper?
Type L Copper Pipe Type L is beefy enough to be used in underground applications but is often used to replace or repair water lines. It comes in both flexible rolls and rigid tubing, with the rigid tubing usually used for internal water piping and the flexible rolls used underground and outside the home.
What type of copper is bendable?
Type L copper is available in ‘hard’ drawn tube and ‘soft’ annealed tube. coils and is easily bent, a proper tube bending tool is required for bending. Type K copper is available in ‘hard’ drawn tube and ‘soft’ annealed tube. coils and is easily bent, a proper tube bending tool is required for bending.
Does copper bend hard temper?
Because of its exceptional formability, copper can be formed as desired at the job site. Copper tube, properly bent, will not collapse on the outside of the bend and will not buckle on the inside of the bend. Both annealed tube and hard drawn tube can be bent with the appropriate hand benders. …
What does #1 copper look like?
Scrap copper #1 tubing is the highest grade of scrap copper tubing sold to scrap metal recycling yards. Copper #1 tubing has a shiny look to it much like a new penny. Copper #1 will not have any green tinge to it, nor will it have dirt, grease or grim on it.
What type of copper pipe is used underground?
Type L is beefy enough to be used in underground applications but is often used to replace or repair water lines. If a home is known to have water issues like hard water, Type L copper is often the go-to choice because hard water will not wear through the thicker walls as easily as they will through Type M pipe.
What is the most common form of copper?
Forms
- Chalcopyrite. Chalcopyrite is copper iron sulfide, and is the most common copper mineral. It has a brassy yellow colour, but tarnishes.
- Bornite. Bornite is bluish-purple in color. It is a common copper ore, usually together with chalcopyrite.
What is the thickest copper?
Type K Copper Pipe
Type K Copper Pipe Among the three different kinds of copper tubing, Type K possesses the thickest walls. Type K copper pipes are often found in water distribution systems, but they’re also quite commonly used in the oil industry, in heating and air systems, and even in fire protection.
Can type M copper be bent?
Type M copper has the thinnest walls of Type M, L, and K. Type M copper ‘hard’ drawn tube has red color labeling in addition to the incised marking. Type L copper is available in ‘hard’ drawn tube and ‘soft’ annealed tube. coils and is easily bent, a proper tube bending tool is required for bending.
Can Type L copper be bent?
You can use type L soft copper and bend it with an inexpensive spring bender. Just heat the pipe up and it becomes soft copper. Then move it where you want.
What type of copper Cannot be used for bending?
(1) Types M and DWV copper tube shall not be bent. (2) Bends in copper tubing of soft or bending temper shall be made with tools manufactured and sized for the purpose.
