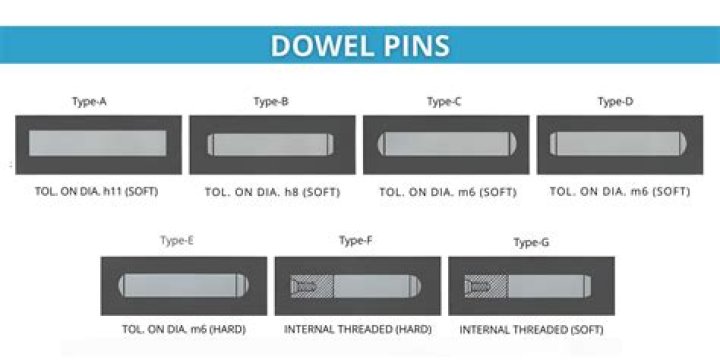

Alternatives to steel dowel pins include roll pins (slotted or spiral), grooved pins and cotter pins.
What size do wooden dowel pins come in?
Dowel rods usually come in widths between 3.175mm (1/8″) and 50.8mm (2″), but they can be as wide as 304.8mm (12″). They are usually between 304.8mm (12″) and 2.4m (9431/64) long.
How long are dowel pins?
General Tools 1.13 in. x 1/4 in. Fluted Dowel Pins-840014 – The Home Depot.
How big are IKEA dowel pins?
0.16 in (L) x 0.03 in (W) x 0.0 in (D)
How thick should a dowel be?
Diameter: Ideally, the diameter of the dowel should be approximately 1/3 – and never more than 1/2 – of the thickness of the wood being joined. For example, if your product is 1” thick, you should be considering a dowel pin 3/8” in diameter. If your product is 1-1/4” thick, a 7/16” diameter would be more suitable.
How do I choose a dowel pin?
Why are dowel pins used?
Dowel Pins are cylindrical tools designed to secure into machinery by fastening different workpieces together. They are effective when aligning devices during reassembly. Dowel pins are most often associated and used in conjunction with socket screws.
What are wooden dowels used for?
The following are some conventional and unconventional uses of wood dowels: Wood dowels are primarily used in re-enforcing joints. Wood dowels can be used to increase the strength of any kind of wood-based handle. Wood dowels can also be used for replacing broken chair rails.
What size hole for wooden dowels?
The holes to accommodate the dowels should each be drilled about 1/16 of an inch deeper than 1/2 of the length of the dowel section being used. Dowels 1 1/2-inches long are commonly used, so in this case, you would drill each of your doweling holes to 13/16 of an inch in length.
What does dowel pin mean?
dowel pin – a fastener that is inserted into holes in two adjacent pieces and holds them together. dowel, joggle.
