What are the symptoms of a bad power valve in a Holley carburetor?

Problems: The incorrect size power valve, or a blown out power valve can cause problems such as poor fuel economy, black smoke emanating from your exhaust, dark or fouling spark plugs and a poor idle.

What happens if my power valve is too small?

Premium Member. If you run too low of a power valve value, the symptoms will be a lean transition as the power valve opens “late”. You usually have a lean popping and possibly even a backfire when you punch the accelerator. It will have poor acceleration.

How many power valves does a Holley carb have?

For this example, we’re going to use a mechanical secondary 650 cfm Holley. The Holley 650 (P/N: 0-4777-9) carb is factory jetted on the primary side with 67 main jets and a power valve with a 0.038-inch PVCR.

Is the Holley 0-9776 450 CFM carburetor Universal?

The 0-9776 450 CFM mechanical secondary carburetor is designed as a universal performance carburetor for use on tunnel ram applications. Holley Performance Products has been the undisputed leader in fuel systems for over 100 years. Holley’s products include carburetors, fuel pumps, fuel injection, intake manifolds, and much more.

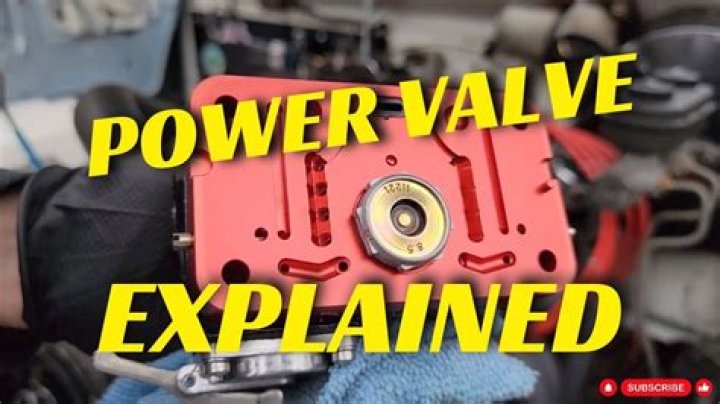

What do the numbers on a Holley power valve mean?

You can see an “8” and a “5” making this an 8.5”Hg power valve. The stamps on the top are date codes. The range for standard Holley valves is from 2.5 to 10.5 “Hg (inches of Mercury). Each power valve is rated to open at a given manifold vacuum level and Holley offers a wide range of these opening values.

Can a Holley carburetor be converted to a power valve checkball?

Holley carburetors built before 1992 can be easily converted to a power valve check-ball to protect against backfire damage. The Holley kit comes with a drill bit, check-ball, a tiny tapered spring, and press-in washer to retain the assembly. The check-ball is placed into the manifold vacuum passage in the throttle plate.

What should the vacuum be at idle on a Holley engine?

For example, the most commonly used Holley power valve is rated at 6.5 “Hg, which means the valve will open when manifold vacuum drops to 6.5 “Hg or lower. Idle vacuum on street engines can be anywhere from 9.0 “Hg for engines with radical, lumpy camshafts and a rough idle. Stock engines typically idle smoothly at 14 to 16 “Hg.
