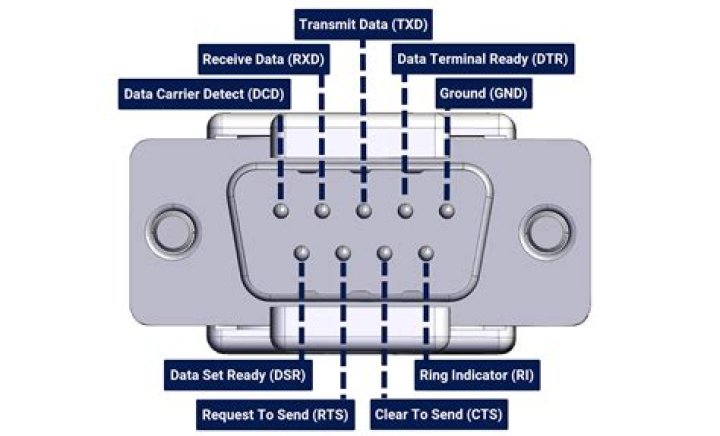

RS232 connector is a port used for data exchange between equipments. It was designed for data exchange between DTE (Data Terminal Equipment) or PC and DCE (Data Communication Equipment) or MODEM.
Are RS-232 cables shielded?
RS-232 serial interface cables should be shielded, low capacitance cables, ideally designed specifically for serial data transmission. The shield should be grounded at both ends of the cable.
Can I use Cat6 for RS-232?
The DB9 RS232 COM signal is transmitted over the network cable,When using this adapter, it is recommended to use within a distance of 1-15 meters. Requires no external power, easy and Convenient to use. the adapter run RS232 data over long distances (up to 100m) using UTP Cat 5/ Cat6 cable to bridge the gap.
What voltage is RS232?
The line voltages of RS232 range from -25V to +25V. They are categorized as signal voltage and control voltage. The signal voltage between +3V to +25V represents logic ‘1’ and the signal voltages between -3V to -25V represents logic ‘0’.
How do you make a RS232 cable?
How to Make an RS232 Serial Cable
- Create four jumper wires from a two-inch piece of data cable.
- Strip off two inches of the protective sheath from both ends of the six-foot data cable.
- Plug in the soldering iron and allow it to heat up for five minutes.
Is RS232 serial or parallel?
The ports COM1 and COM2 on your computer are serial ports and the LPT1 port is a parallel port. Each pin has a specific function such as transmit data, receive data, data terminal ready or autofeed. Serial ports also refer to any port that is RS232 (Recommended Standard 232) compliant in the telecommunications world.
What is an RS232 cable used for?
RS-232 cords transmit data between a modem and another device, such as a computer. Shielded cords have foil to prevent signal interference from nearby devices. Use them in settings with low to moderate signal interference, such as labs, storage facilities, and offices.
How many pins do I need to power an RS-232 device?
These type of units need enough voltage & current to power them self’s up. Typical URART (the RS-232 I/O chip) allows up to 50ma per output pin – so if the device needs 70ma to run we would need to use at least 2 pins for power.
What is the maximum communication distance of a RS232C cable?
Standards define the maximum communication distance as 15 m, maximum speed at 20 kbps. ▲ Close 9-core ⇔ 9-core RS232C connection cordset with a large variety of wiring configurations. All cable harnesses are cut-to-length to fit any application. RS232C standard interface patch cable with molded D-Sub connectors on each end.
What is an independent channel in RS232?
Independent channels are established for two-way (full-duplex) communications. The RS232 signals are represented by voltage levels with respect to a system common (power / logic ground).
