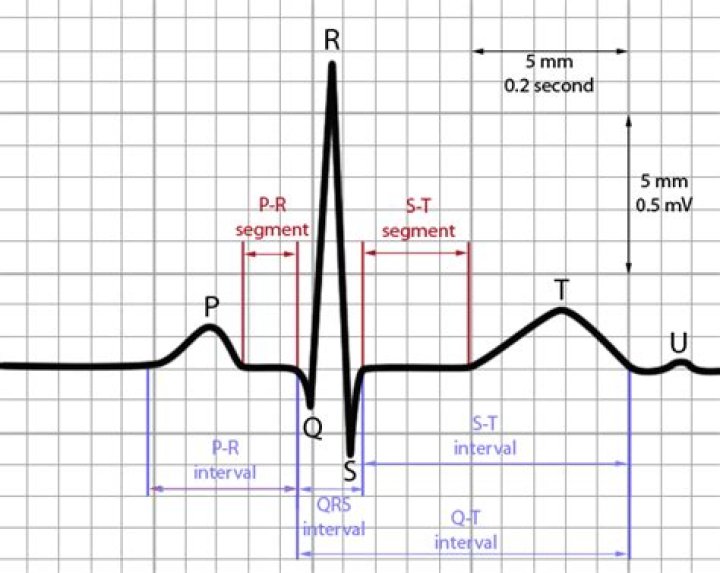

An interval in an ECG is a duration of time that includes one segment and one or more waves. The PR (or PQ) interval starts at the start of the P wave and ends at the start of the QRS. It denotes the conduction of the impulse from the upper part of the atrium to the ventricle.
What is the normal length of time for a QRS interval?
This measurement should be 0.12-0.20 seconds, or 3-5 small squares in duration. The second measurement is the width of the QRS which should be less than 3 small squares, or less than 0.12 seconds in duration.
What is QRS interval in ECG?
The QRS duration represents the time for ventricular depolarization. The duration is normally 0.06 to 0.10 seconds. Q waves are inscribed when the initial QRS vector is directed away from the positive electrode.
What is a short PR interval?
A short PR interval can be seen when the AV node delay is bypassed, such as in Wolff-Parkinson-White syndrome or Lown-Ganong-Levine syndrome. The PR interval will vary in second-degree AV block type I (Wenkebach). Note that the PR interval can be altered by changing sympathetic and parasympathetic tone.
What should your QRS duration be?
What is the 6 second method?
The second method can be used with an irregular rhythm to estimate the rate. Count the number of R waves in a 6 second strip and multiply by 10. For example, if there are 7 R waves in a 6 second strip, the heart rate is 70 (7×10=70).
What are the boxes in ECG?
Each ECG is divided by large boxes and small boxes to help measure times and distances. Each large box represents 0.20 seconds, and there are five small boxes in each large box, thus each small box is equivalent to 0.04 seconds.
How long is the ST segment?
In electrocardiography, the ST segment connects the QRS complex and the T wave and has a duration of 0.005 to 0.150 sec (5 to 150 ms).
What is the TR interval?
The repetition time (TR) is the length of time between corresponding consecutive points on a repeating series of pulses and echoes.
What is a normal EKG interval?
The EKG rhythm will appear regular with heart rate that is normal (60-100 bpm). The P wave features: normal (positive & precedes each qrs). Observe that the PR interval is normal (0.12-0.20 sec).
What are normal ranges for ECG results?
Normal intervals. There is a recognised normal range for such ‘intervals’: PR interval (measured from the beginning of the P wave to the first deflection of the QRS complex). Normal range 120 – 200 ms (3 – 5 small squares on ECG paper).
What is interval on an EKG represents the quiescent period?
After the P wave, there is a “silent period” where nothing is happening in the EKG tracing. This quiescent period is called the PR interval. The PR interval represents a refractory period in which the AV node captures the SA node signal and holds it for a short time.
What is R – your interval in an ECG?
R-R Interval. The R-R interval is the distance between two consecutive R waves.
