Wide Flange Beam Specifications Chart
| SIZE | LBS/FT | DEPTH |
|---|---|---|

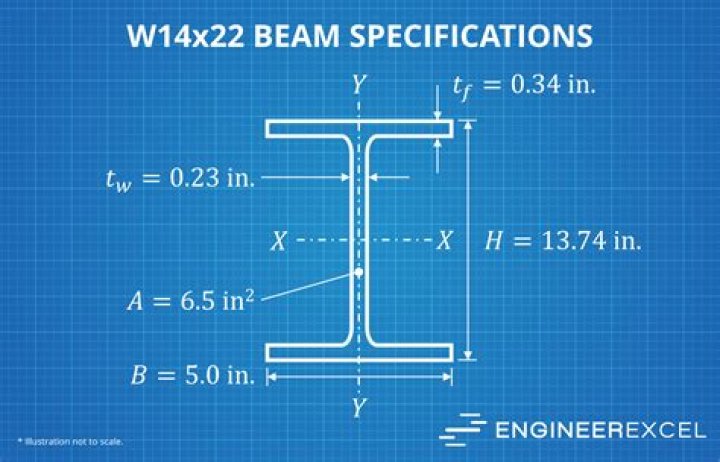

| W14x22 | 22 | 13.74 |
| W14x26 | 26 | 13.91 |
| W14x30 | 30 | 13.84 |
| W14x34 | 34 | 13.98 |
How wide is a W24 beam?
W Beam Dimensions
| Section number | Wt. Per foot (lbs) | Dimensions |
|---|---|---|
| D | ||
| W24 | 146 | 24 3/4 |
| 162 | 25 | |
| W27 | 84 | 26 3/4 |
How wide is a W8 beam?
Wide Flange Beams – Misc Shapes
| Size & Weight Per Foot | B Flange Width Inches |
|---|---|
| W6 x 25 | 6.080 |
| W8 x 10 | 3.940 |
| W8 x 13 | 4.000 |
| W8 x 15 | 4.015 |
What does W10x22 mean?
In the United States, steel I-beams are commonly specified using the depth and weight of the beam. For example, a “W10x22” beam is approximately 10 in (25 cm) in depth (nominal height of the I-beam from the outer face of one flange to the outer face of the other flange) and weighs 22 lb/ft (33 kg/m).
What is a W24 beam?
W24 Beams are a steel wide flange beam where the dimension from flange to flange is 24″. The beams are sized in LB/LF, inventory will range from W24x117, W24x131, W24x192, W24x250 and other sizes available for sale. W24 beams are a great size for templates, access trestle, waler beams, and other various applications.
What size is a W21x44 beam?
ASTM Steel Wide Channel H Beam Section Properties various sizes ranging W14 – W25
| in × lb/ft | Area (in2) | tw (in) |
|---|---|---|
| W21x44 | 13 | 0.35 |
| W18x119 | 35.1 | 0.655 |
| W18x106 | 31.1 | 0.59 |
| W18x97 | 28.5 | 0.535 |
